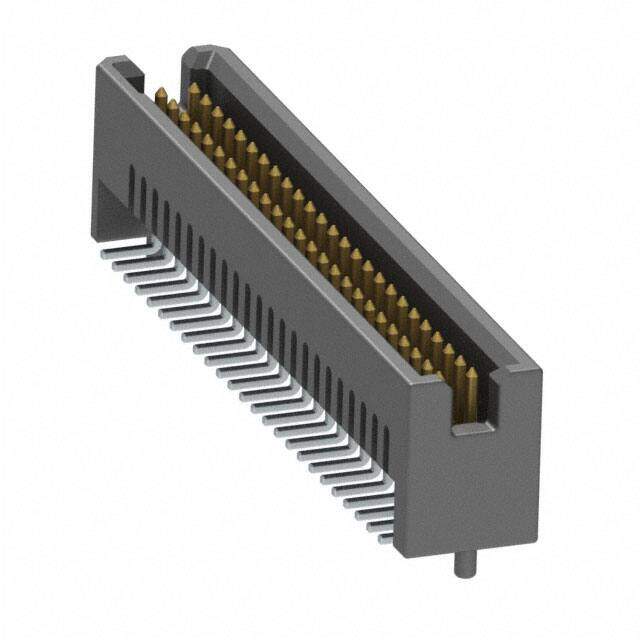

TFM-125-12-SM-D-A-P-TR
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Rectangular Connector Header
PDF
/
Inventory: 10010
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 30.0μin 0.76μm
Length 34.93mm
Technical
Max Current Rating 5A
Max Voltage Rating (AC) 350V
Contact Length - Mating 0.139 3.53mm
Contact Finish - Post Tin
Shrouding Shrouded - 4 Wall
Row Spacing - Mating 0.050 (1.27mm)
Insulation Color Black
Pitch - Mating 0.050 1.27mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.290 7.37mm
Depth 5.72mm
Orientation Straight
Current Rating (Amps) 2.9A per Contact
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Push-Pull
HTS Code 8536.69.40.40
Voltage - Rated 275VAC
Gender Male
Number of Rows 2
Number of Positions 50
Connector Type Header
ECCN Code EAR99
Termination Solder
Part Status Active
Feature Board Guide, Pick and Place
JESD-609 Code e3
Series Tiger Eye? TFM
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C
Physical
Housing Material Polymer
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Surface Mount
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 3 Weeks
