TFM-120-12-S-D-LC
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

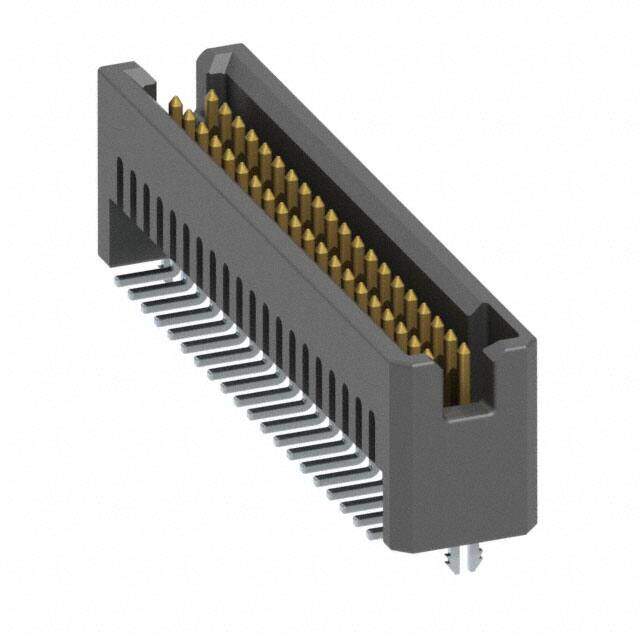

SAMTEC TFM-120-12-S-D-LC Board-To-Board Connector, TFM Series, 40 Contacts, Header, 1.27 mm, Surface Mount, 2 Rows
PDF
/
Buying Options
Total Price: USD $5.68
Unit Price: USD $5.676
≥1 USD $5.676
≥10 USD $5.324
≥100 USD $4.9632
≥500 USD $4.6376
≥1000 USD $4.2328
≥3000 USD $3.960862
Inventory: 136
Minimum: 1
-
+
Technical Details
Technical
Total Number of Contacts 40
Insulation Height 0.290 7.37mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.050 1.27mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL, CSA
Reliability COMMERCIAL
Row Spacing - Mating 0.050 (1.27mm)
Shrouding Shrouded - 4 Wall
Number Of PCB Rows 2
Contact Finish - Post Tin
Contact Length - Mating 0.139 3.53mm
PCB Contact Pattern RECTANGULAR
UL Flammability Code 94V-0
Mating Contact Pitch 0.05 inch
Polarization Key POLARIZED HOUSING
Current Rating (Amps) 2.9A per Contact
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Pull
Additional Feature NONE
Voltage - Rated 275VAC
Gender Male
Number of Rows 2
Number of Positions 40
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Lock
JESD-609 Code e3
Series Tiger Eye? TFM
Published 2011
Packaging Tube
Operating Temperature -55°C~125°C
Dimensions
Plating Thickness 30μin
Contact Finish Thickness - Mating 30.0μin 0.76μm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Physical
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Surface Mount
Mount Surface Mount
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 3 Weeks
Alternative Model
