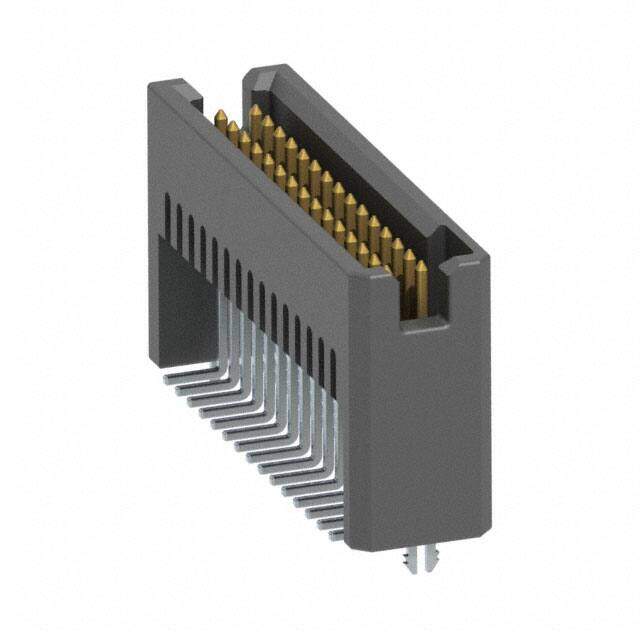

TFM-115-32-S-D-LC-TR image
Favorite
TFM-115-32-S-D-LC-TR image
Favorite

TFM-115-32-S-D-LC-TR

Samtec Inc.
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description Conn Shrouded Header HDR 30 POS 1.27mm Solder ST SMD T/R
PDF
/
Inventory: 9396
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 4 Weeks

Physical

Contact Material Phosphor Bronze
Mount Surface Mount
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)

Technical

Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Published 2011
Series Tiger Eye? TFM
JESD-609 Code e3
Feature Board Lock
Pbfree Code yes
Part Status Active
Termination Solder
Connector Type Header
Number of Positions 30
Number of Rows 2
Gender Male
Voltage - Rated 275VAC
Fastening Type Push-Pull
Contact Finish - Mating Gold
MIL Conformance NO
Mating Contact Pitch 0.05 inch
Body Depth 0.435 inch
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.139 3.53mm
Contact Finish - Post Tin
Number Of PCB Rows 2
Shrouding Shrouded - 4 Wall
Row Spacing - Mating 0.050 (1.27mm)
Body Length or Diameter 0.975 inch
Reliability COMMERCIAL
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.050 1.27mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.435 11.05mm
Total Number of Contacts 30
Current Rating (Amps) 2.9A per Contact
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness - Mating 30.0μin 0.76μm
