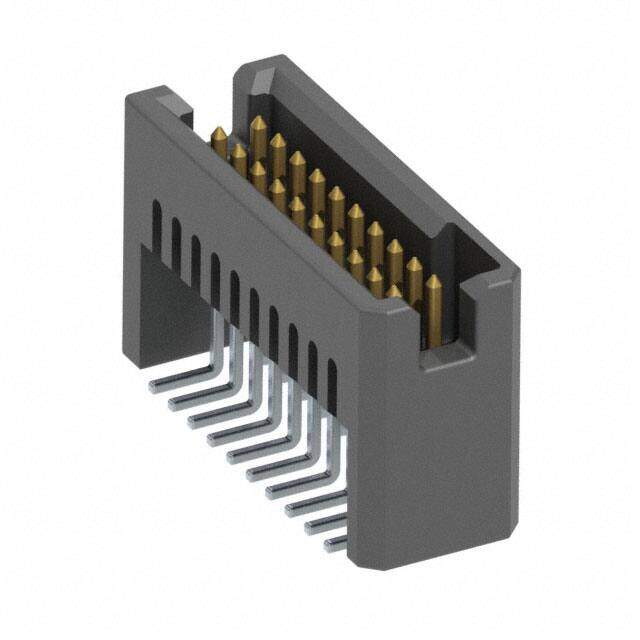

TFM-110-22-L-D-K-TR
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Shrouded Header HDR 20 POS 1.27mm Solder ST SMD T/R
PDF
/
Buying Options
Total Price: USD $14.17
Unit Price: USD $14.174068
≥1 USD $14.174068
≥325 USD $5.655973
≥650 USD $5.466916
≥975 USD $5.3737
Inventory: 7201
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 15.0μin 0.38μm
Plating Thickness 15μin
Length 15.88mm
Technical
Max Current Rating 5A
Max Voltage Rating (AC) 350V
Mating Contact Pitch 0.05 inch
UL Flammability Code 94V-0
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.139 3.53mm
Contact Finish - Post Tin
Number Of PCB Rows 2
Shrouding Shrouded - 4 Wall
Row Spacing - Mating 0.050 (1.27mm)
Reliability COMMERCIAL
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.050 1.27mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.360 9.14mm
Depth 5.72mm
Orientation Straight
Total Number of Contacts 20
Current Rating (Amps) 2.9A per Contact
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Pull
Voltage - Rated 275VAC
Gender Male
Number of Rows 2
Number of Positions 20
Connector Type Header
Termination Solder
Part Status Active
Feature Pick and Place
JESD-609 Code e3
Series Tiger Eye? TFM
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C
Physical
Housing Material Polymer
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Surface Mount
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 3 Weeks
Alternative Model
