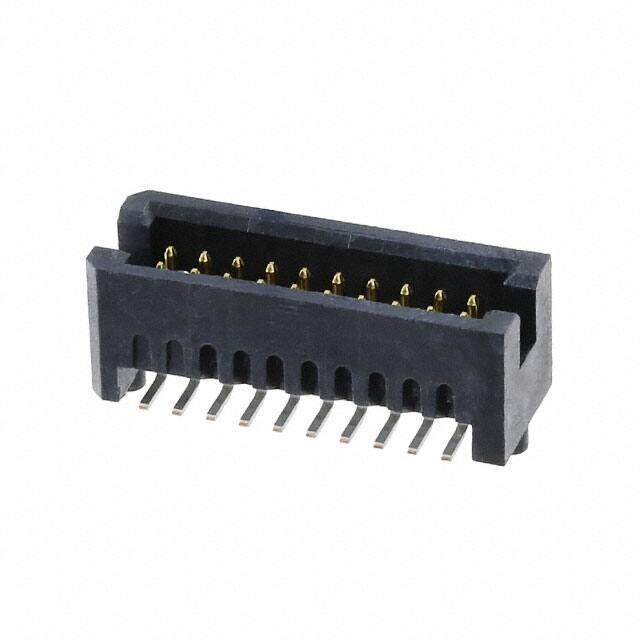

TFM-110-02-L-D-A
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
SAMTEC TFM-110-02-L-D-A Board-To-Board Connector, TFM Series, 20 Contacts, Header, 1.27 mm, Surface Mount, 2 Rows
PDF
/
Buying Options
Total Price: USD $2.64
Unit Price: USD $2.64
≥1 USD $2.64
≥10 USD $2.4288
≥100 USD $2.2176
≥500 USD $2.0504
≥1000 USD $1.8656
≥3000 USD $1.698409
Inventory: 1092
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Material Phosphor Bronze
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Housing Material Polymer
Board Mounting Option PEG
Technical
Operating Temperature -55°C~125°C
Packaging Tube
Published 2009
Series Tiger Eye? TFM
JESD-609 Code e3
Feature Board Guide
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 20
Number of Rows 2
Gender Male
Voltage - Rated 275VAC
Additional Feature E.L.P., TIGER EYE
HTS Code 8536.69.40.40
Fastening Type Push-Pull
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 2.9A per Contact
Total Number of Contacts 20
Orientation Straight
Depth 5.72mm
Insulation Height 0.220 5.60mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.050 1.27mm
Insulation Color Black
Number of Conductors ONE
Reliability COMMERCIAL
Row Spacing - Mating 0.050 (1.27mm)
Shrouding Shrouded - 4 Wall
Number Of PCB Rows 2
Contact Finish - Post Tin
Contact Length - Mating 0.131 3.33mm
PCB Contact Pattern RECTANGULAR
Mating Contact Pitch 0.05 inch
Max Voltage Rating (AC) 350V
Max Current Rating 5A
Dimensions
Length 15.88mm
Plating Thickness 15μin
Contact Finish Thickness - Mating 15.0μin 0.38μm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
