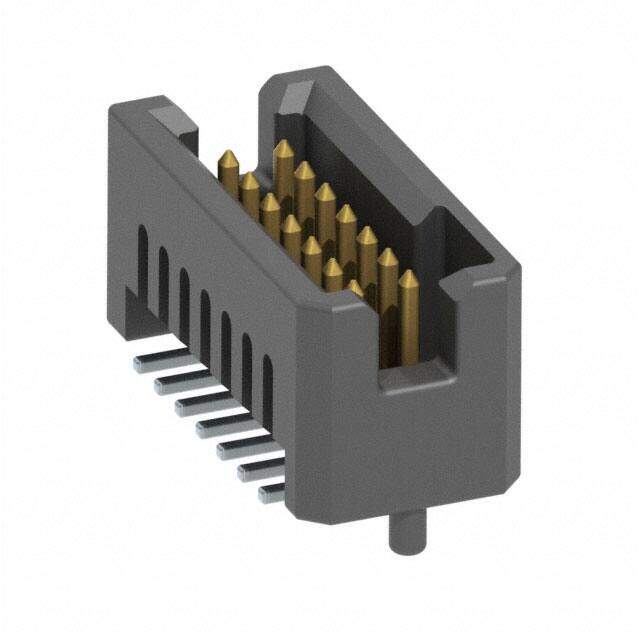

TFM-107-02-L-D-A-P-TR
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Shrouded Header HDR 14 POS 1.27mm Solder ST SMD T/R
PDF
/
Inventory: 5044
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Mounting Type Surface Mount
Contact Material Phosphor Bronze
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Series Tiger Eye? TFM
Contact Length - Mating 0.131 3.33mm
Contact Finish - Post Tin
Shrouding Shrouded - 4 Wall
Row Spacing - Mating 0.050 (1.27mm)
Insulation Color Black
Pitch - Mating 0.050 1.27mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.220 5.60mm
Current Rating (Amps) 2.9A per Contact
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Push-Pull
Voltage - Rated 275VAC
Gender Male
Number of Rows 2
Number of Positions 14
Connector Type Header
Termination Solder
Part Status Active
Feature Board Guide, Pick and Place
JESD-609 Code e3
Supply Chain
Factory Lead Time 1 Weeks
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 15.0μin 0.38μm
