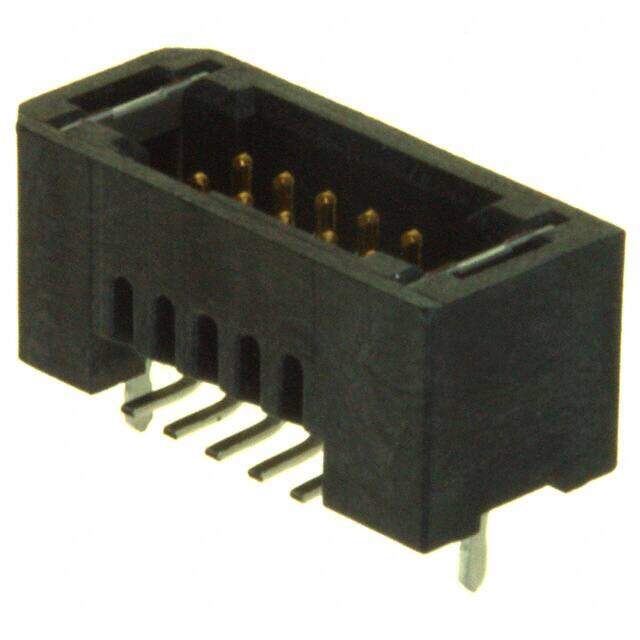

TFM-105-02-S-D-WT
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER 10POS 1.27MM GLD SMD
PDF
/
Buying Options
Total Price: USD $2.41
Unit Price: USD $2.4112
≥1 USD $2.4112
≥10 USD $1.9976
≥100 USD $1.672
≥500 USD $1.4432
≥1000 USD $1.3376
≥3000 USD $1.232009
Inventory: 1976
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 30.0μin 0.76μm
Plating Thickness 30μin
Length 13.03mm
Technical
Polarization Key POLARIZED HOUSING
Max Voltage Rating (AC) 350V
Mating Contact Pitch 0.05 inch
Housing Color Black
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.131 3.33mm
Contact Finish - Post Tin
Lead Pitch 1.27mm
Number Of PCB Rows 2
Shrouding Shrouded - 4 Wall
Row Spacing - Mating 0.050 (1.27mm)
Reliability COMMERCIAL
Voltage - Rated AC 350V
Reference Standard UL, CSA
Number of Conductors ONE
Pitch - Mating 0.050 1.27mm
Current Rating 5A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.220 5.60mm
Depth 5.72mm
Orientation Straight
Total Number of Contacts 10
Current Rating (Amps) 2.9A per Contact
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Pull
HTS Code 8536.69.40.40
Additional Feature E.L.P., TIGER EYE
Voltage - Rated 275VAC
Gender Male
Number of Rows 2
Number of Positions 10
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Solder Retention
JESD-609 Code e3
Series Tiger Eye? TFM
Published 2008
Packaging Tube
Operating Temperature -55°C~125°C
Physical
Housing Material Polymer
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Surface Mount
Mount Surface Mount
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 6 Weeks
