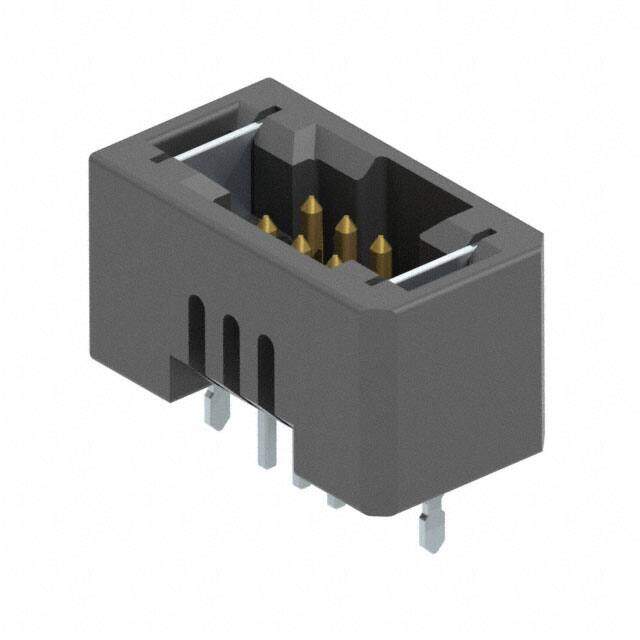

TFM-103-01-L-D-WT
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER VERT 6POS 1.27MM
PDF
/
Buying Options
Total Price: USD $2.75
Unit Price: USD $2.753043
≥1 USD $2.753043
≥10 USD $2.597209
≥100 USD $2.450198
≥500 USD $2.311508
≥1000 USD $2.18067
Inventory: 6300
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 15.0μin 0.38μm
Plating Thickness 15μin
Technical
Mating Contact Pitch 0.05 inch
UL Flammability Code 94V-0
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.131 3.33mm
Contact Finish - Post Tin
Number Of PCB Rows 2
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.078 1.98mm
Row Spacing - Mating 0.050 (1.27mm)
Body Length or Diameter 0.413 inch
Reliability COMMERCIAL
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.050 1.27mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.220 5.60mm
Current Rating (Amps) 2.9A per Contact
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Pull
Voltage - Rated 275VAC
Number of Rows 2
Number of Positions 6
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Solder Retention
JESD-609 Code e3
Series Tiger Eye? TFM
Published 2010
Packaging Tube
Operating Temperature -55°C~125°C
Physical
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Through Hole
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 3 Weeks
