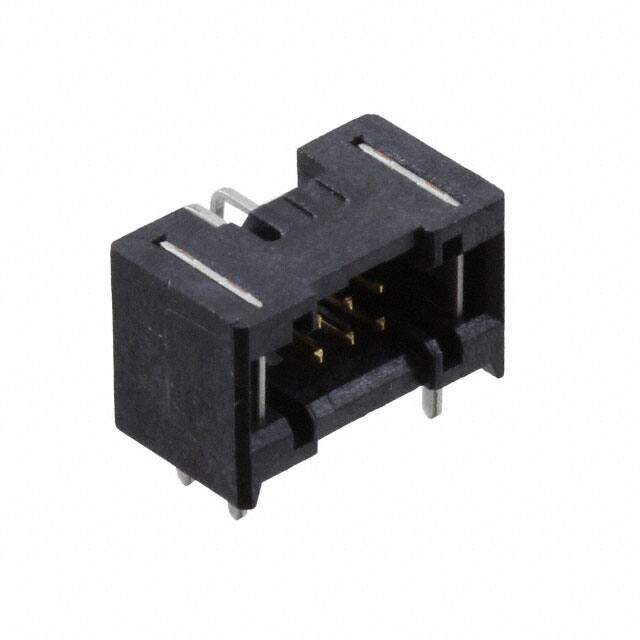

TFM-103-01-L-D-RE1-WT
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER R/A 6POS 1.27MM
PDF
/
Buying Options
Total Price: USD $2.91
Unit Price: USD $2.9128
≥1 USD $2.9128
≥10 USD $2.376
≥100 USD $2.0152
≥500 USD $1.7864
≥1000 USD $1.452009
≥3000 USD $1.346409
Inventory: 6373
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Material Phosphor Bronze
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Technical
Operating Temperature -55°C~125°C
Packaging Tube
Published 2015
Series Tiger Eye? TFM
JESD-609 Code e3
Feature Solder Retention
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header, Elevated
Number of Positions 6
Number of Rows 2
Voltage - Rated 275VAC
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Male Pin
Current Rating (Amps) 2.9A per Contact
Insulation Height 0.256 6.50mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.050 1.27mm
Insulation Color Black
Row Spacing - Mating 0.050 (1.27mm)
Contact Length - Post 0.078 1.98mm
Shrouding Shrouded - 4 Wall
Contact Finish - Post Tin
Contact Length - Mating 0.139 3.53mm
Dimensions
Contact Finish Thickness - Mating 15.0μin 0.38μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
