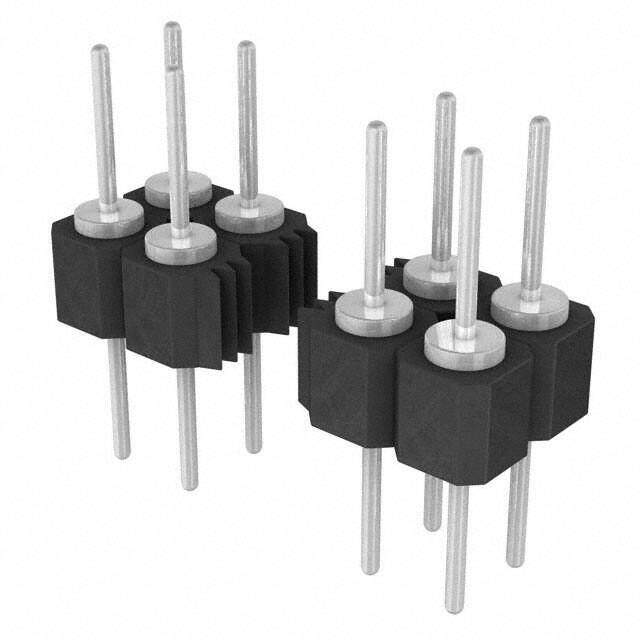

TD-112-T-A
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
SAMTEC TD-112-T-A Board-To-Board Connector, Vertical, TD Series, 24 Contacts, Header, 2.54 mm, Through Hole, 2 Rows
PDF
/
Inventory: 7045
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole
Contact Shape Circular
Insulation Material Polyester, Glass Filled
Housing Material Plastic
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Published 2012
Series TD
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 24
Number of Rows 2
Gender Male
Fastening Type Push-Pull
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Insulation Height 0.100 2.54mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.156 3.96mm
Shrouding Unshrouded
Number Of PCB Rows 2
Contact Length - Mating 0.166 4.22mm
PCB Contact Pattern RECTANGULAR
Housing Color Black
Overall Contact Length 0.477 12.12mm
Mating Contact Pitch 0.1 inch
Dimensions
Height 2.54mm
Length 30.5mm
Width 5.08mm
Contact Finish Thickness - Mating 200.0μin 5.08μm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
