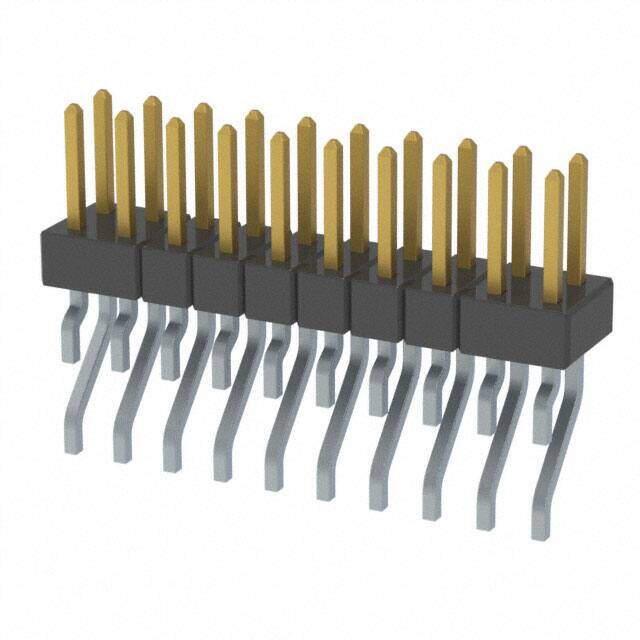

MMT-110-02-L-DH-K
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Rectangular Connector Header
PDF
/
Inventory: 4524
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Material Phosphor Bronze
Mounting Type Surface Mount, Right Angle
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Series MMT
Feature Pick and Place
Part Status Active
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 20
Number of Rows 2
Gender Male
HTS Code 8536.69.40.40
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Male Pin
Current Rating (Amps) 3A
Insulation Height 0.157 4.00mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.079 2.00mm
Insulation Color Black
Row Spacing - Mating 0.079 (2.00mm)
Shrouding Unshrouded
Contact Finish - Post Tin
Contact Length - Mating 0.175 4.45mm
Dimensions
Contact Finish Thickness - Mating 10.0μin 0.25μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
