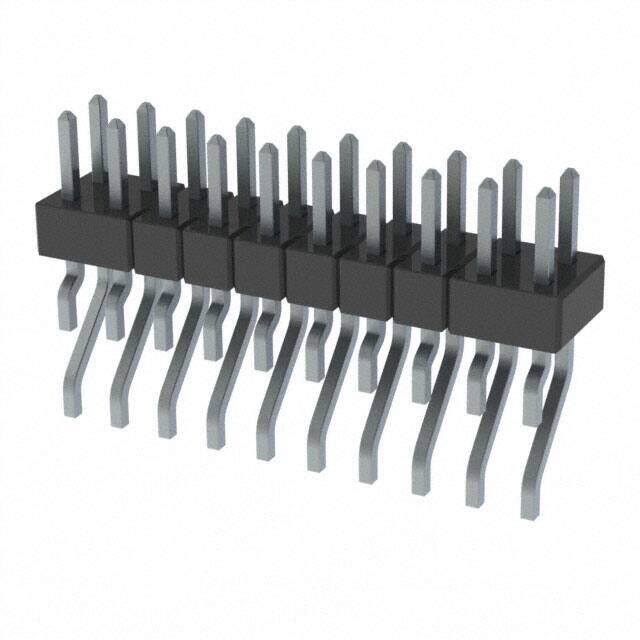

MMT-110-01-T-DH-TR
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Unshrouded Header HDR 20 POS 2mm Solder RA SMD T/R
PDF
/
Inventory: 6250
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Material Phosphor Bronze
Mounting Type Surface Mount, Right Angle
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Technical
Operating Temperature -55°C~105°C
Packaging Tape & Reel (TR)
Published 2016
Series MMT
Part Status Active
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 20
Number of Rows 2
Gender Male
HTS Code 8536.69.40.40
Fastening Type Push-Pull
Contact Finish - Mating Tin
Contact Type Male Pin
Current Rating (Amps) 3A
Insulation Height 0.157 4.00mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.079 2.00mm
Insulation Color Black
Row Spacing - Mating 0.079 (2.00mm)
Shrouding Unshrouded
Contact Length - Mating 0.126 3.20mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
