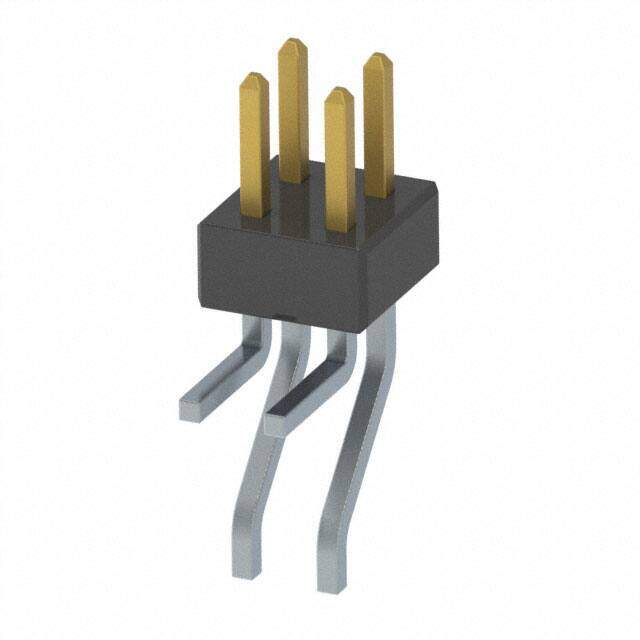

MMT-102-01-L-MT-TR image
Favorite
MMT-102-01-L-MT-TR image
Favorite

MMT-102-01-L-MT-TR

Samtec Inc.
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description Rectangular Connector Header
PDF
/
Inventory: 2357
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Length - Termination 0.1 inch
Contact Finish Thickness - Mating 10.0μin 0.25μm
Plating Thickness 10μin

Technical

Mating Contact Pitch 0.079 inch
Body Breadth 0.157 inch
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.126 3.20mm
Contact Finish - Post Tin
Number Of PCB Rows 2
Shrouding Unshrouded
Row Spacing - Mating 0.079 (2.00mm)
Body Length or Diameter 0.158 inch
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.079 2.00mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.157 4.00mm
Total Number of Contacts 4
Current Rating (Amps) 3A
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Push-Pull
Number of Rows 2
Number of Positions 4
Connector Type Header
ECCN Code EAR99
Termination Solder
Part Status Active
JESD-609 Code e3
Series MMT
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C

Physical

Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Surface Mount, Right Angle; Through Hole
Contact Material Phosphor Bronze

Supply Chain

Factory Lead Time 3 Weeks
