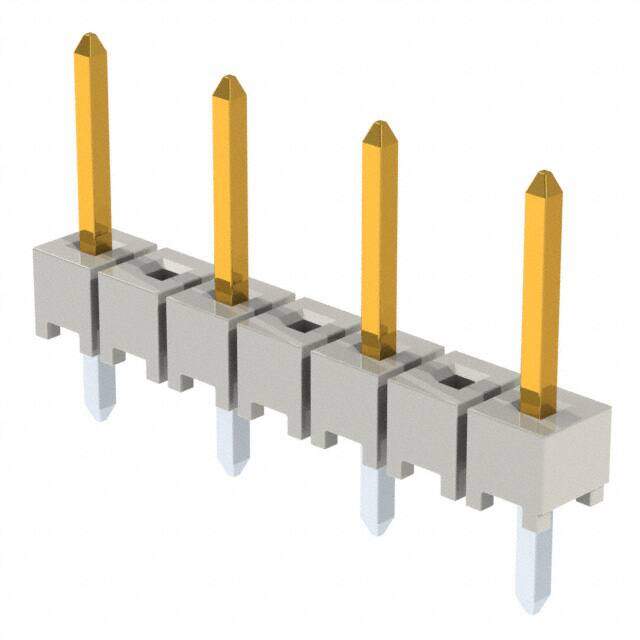

HTSW-204-07-SS-S
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Rectangular Connector Header
PDF
/
Inventory: 5927
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Material Phosphor Bronze
Mounting Type Through Hole
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Series HTSW
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
Connector Type Header
Number of Positions 4
Number of Rows 1
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Male Pin
Current Rating (Amps) Varies by WireGAuge
Terminal Pitch 5.08mm
Insulation Height 0.100 2.54mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.200 5.08mm
Insulation Color Natural
Number of Conductors ONE
Reliability COMMERCIAL
Body Length or Diameter 0.7 inch
Contact Length - Post 0.100 2.54mm
Shrouding Unshrouded
Number Of PCB Rows 1
Contact Finish - Post Tin
Contact Length - Mating 0.230 5.84mm
PCB Contact Pattern RECTANGULAR
Body Breadth 0.098 inch
Overall Contact Length 0.430 10.92mm
Mating Contact Pitch 0.2 inch
Dimensions
Contact Finish Thickness - Mating 30.0μin 0.76μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
