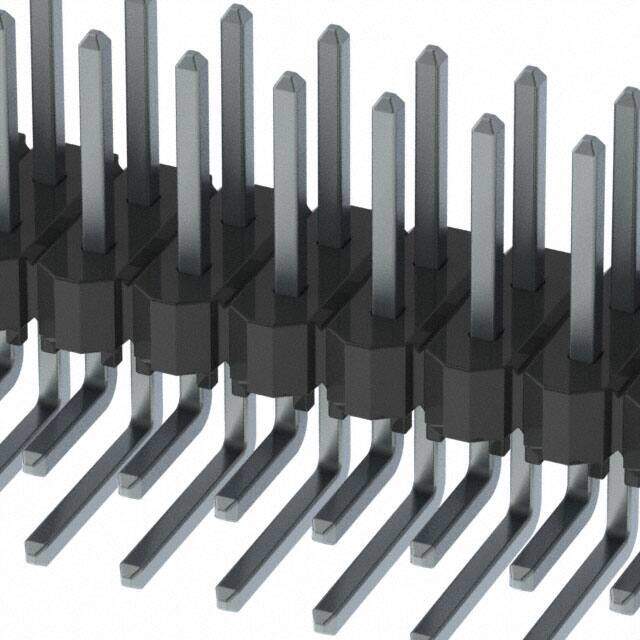

HTSW-125-08-TM-D-RA

Samtec Inc.
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description Conn Unshrouded Header HDR 50 POS 2.54mm Solder RA Thru-Hole
PDF
/
Inventory: 9079
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Length 63.5mm

Technical

Max Current Rating 7.6A
Max Voltage Rating (AC) 450V
Mating Contact Pitch 0.1 inch
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.230 5.84mm
Number Of PCB Rows 2
Shrouding Unshrouded
Contact Length - Post 0.090 2.29mm
Row Spacing - Mating 0.100 (2.54mm)
Reliability COMMERCIAL
Number of Conductors ONE
Insulation Color Natural
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.240 6.10mm
Depth 12.44mm
Orientation Right Angle
Current Rating (Amps) Varies by WireGAuge
Contact Type Male Pin
Contact Finish - Mating Tin
Fastening Type Push-Pull
Gender Male
Number of Rows 2
Number of Positions 50
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
JESD-609 Code e3
Series HTSW
Packaging Bulk
Operating Temperature -55°C~105°C

Physical

Housing Material Polymer
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Through Hole, Right Angle
Contact Material Phosphor Bronze

Supply Chain

Factory Lead Time 3 Weeks
