HTSW-117-05-L-S
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

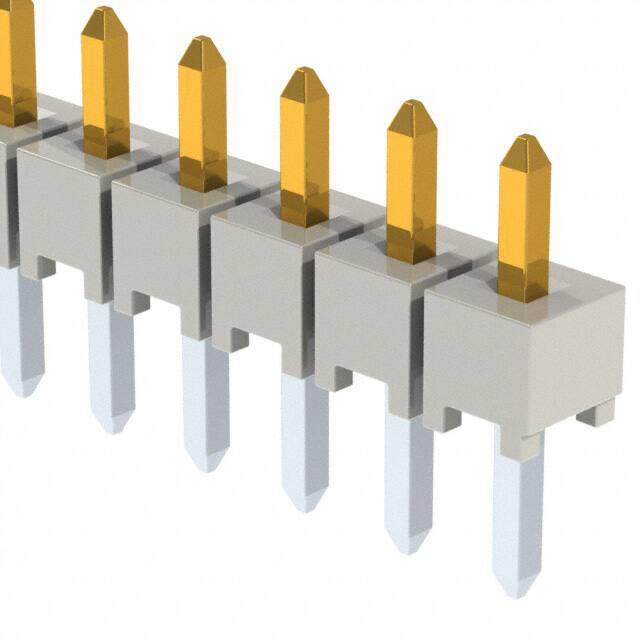

SAMTEC HTSW-117-05-L-S Board-To-Board Connector, Vertical, HTSW Series, 17 Contacts, Header, 2.54 mm, Through Hole, 1 Rows
PDF
/
Inventory: 5640
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2005
Series HTSW
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
Connector Type Header
Number of Positions 17
Number of Rows 1
Gender Male
Fastening Type Push-Pull
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) Varies by WireGAuge
Insulation Height 0.100 2.54mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Natural
Number of Conductors ONE
Reliability COMMERCIAL
Contact Length - Post 0.130 3.30mm
Shrouding Unshrouded
Number Of PCB Rows 1
Lead Pitch 2.54mm
Contact Finish - Post Tin
Contact Length - Mating 0.105 2.67mm
PCB Contact Pattern RECTANGULAR
Body Breadth 0.098 inch
Overall Contact Length 0.335 8.51mm
Dimensions
Contact Finish Thickness - Mating 10.0μin 0.25μm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
