HTSW-115-05-T-S
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

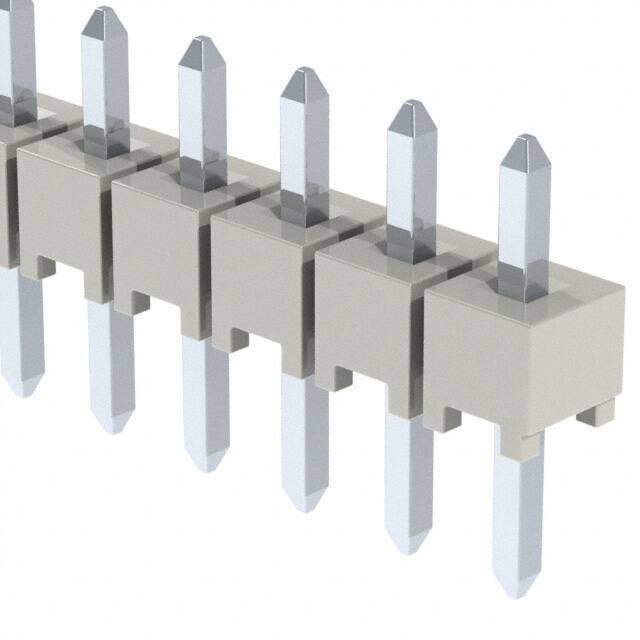

SAMTEC HTSW-115-05-T-S Board-To-Board Connector, Vertical, HTSW Series, 15 Contacts, Header, 2.54 mm, Through Hole, 1 Rows
PDF
/
Inventory: 5975
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Material Flammability Rating UL94 V-0
Technical
Overall Contact Length 0.335 8.51mm
Body Breadth 0.098 inch
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.105 2.67mm
Lead Pitch 2.54mm
Number Of PCB Rows 1
Shrouding Unshrouded
Contact Length - Post 0.130 3.30mm
Reliability COMMERCIAL
Number of Conductors ONE
Insulation Color Natural
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.100 2.54mm
Current Rating (Amps) Varies by WireGAuge
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Fastening Type Push-Pull
Additional Feature E.L.P.
Gender Male
Number of Rows 1
Number of Positions 15
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series HTSW
Published 2005
Packaging Bulk
Operating Temperature -55°C~105°C
