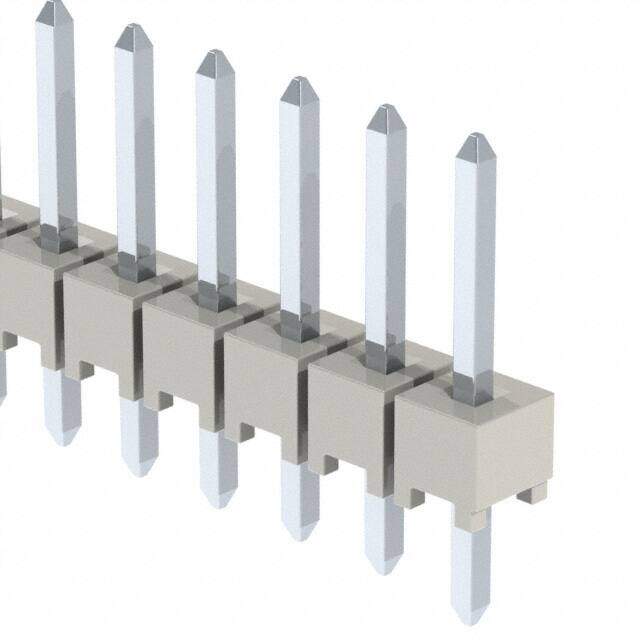

HTSW-112-07-TM-S

Samtec Inc.
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description Conn Unshrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole
PDF
/
Inventory: 8262
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 3 Weeks

Physical

Contact Material Phosphor Bronze
Mounting Type Through Hole
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Housing Material Polymer

Technical

Operating Temperature -55°C~105°C
Packaging Bulk
Series HTSW
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 12
Number of Rows 1
Gender Male
HTS Code 8536.69.40.40
Fastening Type Push-Pull
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) Varies by WireGAuge
Orientation Straight
Terminal Pitch 2.54mm
Depth 2.48mm
Insulation Height 0.100 2.54mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Natural
Number of Conductors ONE
Reliability COMMERCIAL
Contact Length - Post 0.100 2.54mm
Shrouding Unshrouded
Number Of PCB Rows 1
Contact Length - Mating 0.230 5.84mm
PCB Contact Pattern RECTANGULAR
Body Breadth 0.098 inch
UL Flammability Code 94V-0
Overall Contact Length 0.430 10.92mm
Max Voltage Rating (AC) 550V
Max Current Rating 7.6A

Dimensions

Length 30.48mm

Compliance

Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status ROHS3 Compliant
