HTSW-109-08-T-D-RA
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

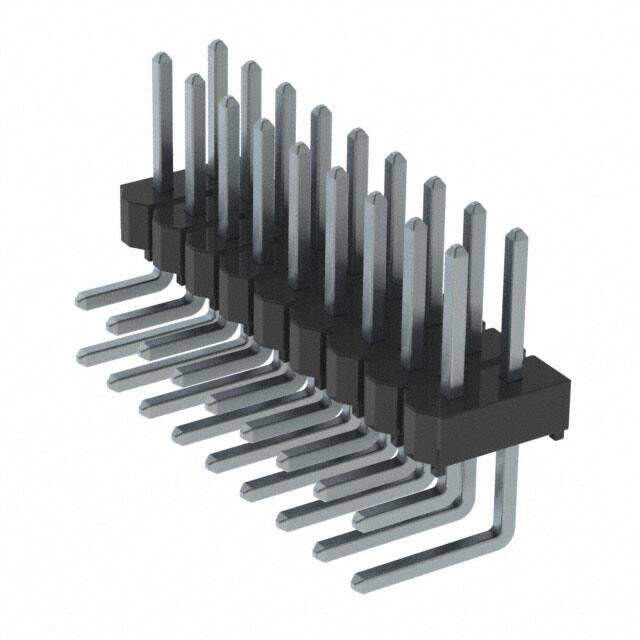

SAMTEC HTSW-109-08-T-D-RA Board-To-Board Connector, Right Angle, HTSW Series, 18 Contacts, Header, 2.54 mm, Through Hole
PDF
/
Inventory: 7676
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Material Flammability Rating UL94 V-0
Technical
Mating Contact Pitch 0.1 inch
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.230 5.84mm
Lead Pitch 2.54mm
Number Of PCB Rows 2
Shrouding Unshrouded
Contact Length - Post 0.090 2.29mm
Row Spacing - Mating 0.100 (2.54mm)
Body Length or Diameter 0.9 inch
Reliability COMMERCIAL
Number of Conductors ONE
Insulation Color Natural
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.240 6.10mm
Current Rating (Amps) Varies by WireGAuge
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Fastening Type Push-Pull
Gender Male
Number of Rows 2
Number of Positions 18
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series HTSW
Published 2005
Packaging Bulk
Operating Temperature -55°C~105°C
Physical
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 3 Weeks
Alternative Model
