HTSW-109-07-T-D-LL
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

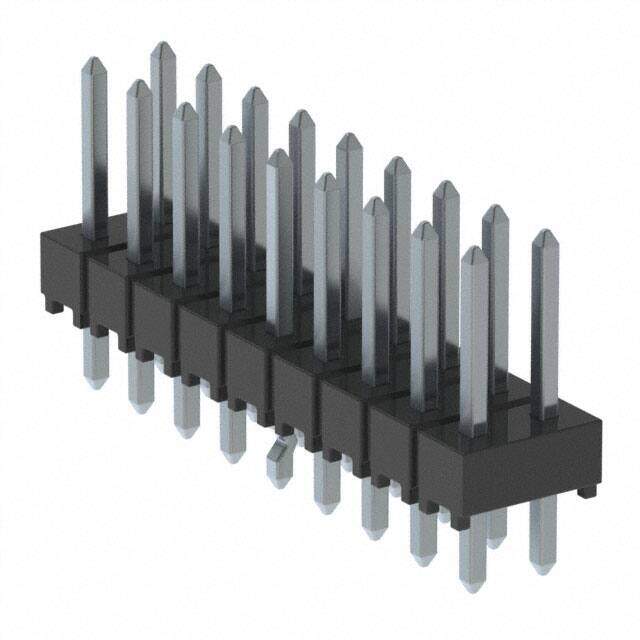

SAMTEC HTSW-109-07-T-D-LL Board-To-Board Connector, Vertical, HTSW Series, 18 Contacts, Header, 2.54 mm, Through Hole, 2 Rows
PDF
/
Inventory: 5736
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Fastening Type Push-Pull
HTS Code 8536.69.40.40
Additional Feature E.L.P.
Gender Male
Number of Rows 2
Number of Positions 18
Connector Type Header
ECCN Code EAR99
Termination Kinked Pin, Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series HTSW
Published 2005
Packaging Bulk
Operating Temperature -55°C~105°C
Mating Contact Pitch 0.1 inch
Overall Contact Length 0.430 10.92mm
Body Depth 0.1 inch
Body Breadth 0.198 inch
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.230 5.84mm
Lead Pitch 2.54mm
Number Of PCB Rows 2
Shrouding Unshrouded
Contact Length - Post 0.100 2.54mm
Row Spacing - Mating 0.100 (2.54mm)
Body Length or Diameter 0.9 inch
Reliability COMMERCIAL
Number of Conductors ONE
Insulation Color Natural
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.100 2.54mm
Current Rating (Amps) Varies by WireGAuge
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
Physical
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 3 Weeks
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Material Flammability Rating UL94 V-0
Alternative Model
