HTSW-106-07-TM-D
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

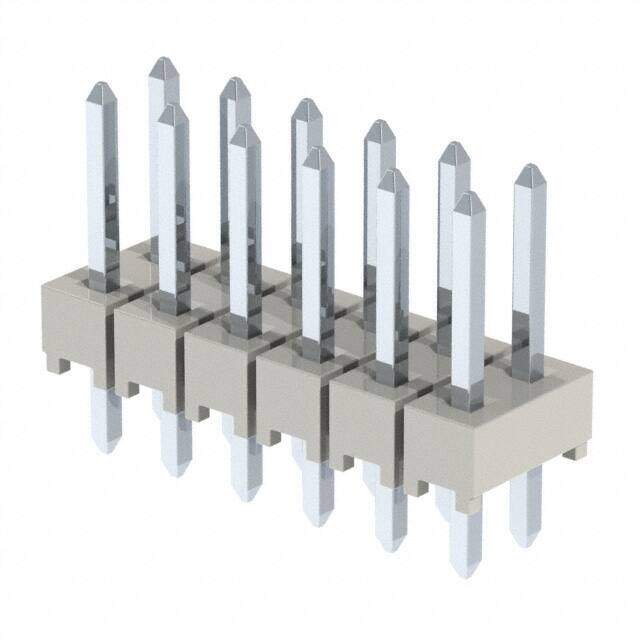

Conn Unshrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole
PDF
/
Inventory: 7806
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Published 2016
Series HTSW
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
Connector Type Header
Number of Positions 12
Number of Rows 2
Gender Male
Fastening Type Push-Pull
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) Varies by WireGAuge
Insulation Height 0.100 2.54mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Natural
Number of Conductors ONE
Reliability COMMERCIAL
Body Length or Diameter 0.6 inch
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.100 2.54mm
Shrouding Unshrouded
Number Of PCB Rows 2
Contact Length - Mating 0.230 5.84mm
PCB Contact Pattern RECTANGULAR
Body Breadth 0.198 inch
Body Depth 0.1 inch
Overall Contact Length 0.430 10.92mm
Mating Contact Pitch 0.1 inch
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status ROHS3 Compliant
Alternative Model
