HTSW-106-07-L-S-LL

Samtec Inc.
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins

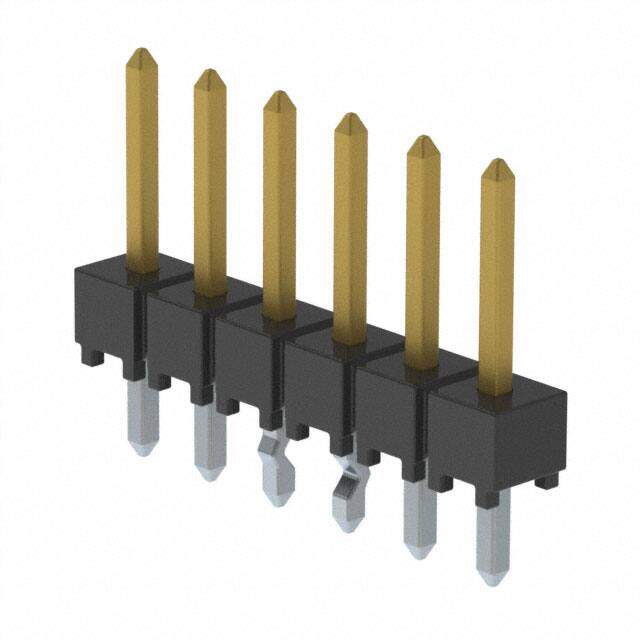

Description SAMTEC HTSW-106-07-L-S-LL Board-To-Board Connector, Vertical, HTSW Series, 6 Contacts, Header, 2.54 mm, Through Hole, 1 Rows
PDF
/
Inventory: 9280
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Technical

Fastening Type Push-Pull
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) Varies by WireGAuge
Insulation Height 0.100 2.54mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Natural
Number of Conductors ONE
Reliability COMMERCIAL
Contact Length - Post 0.100 2.54mm
Shrouding Unshrouded
Number Of PCB Rows 1
Lead Pitch 2.54mm
Contact Finish - Post Tin
Contact Length - Mating 0.230 5.84mm
PCB Contact Pattern RECTANGULAR
Body Breadth 0.098 inch
Overall Contact Length 0.430 10.92mm
Additional Feature E.L.P.
Gender Male
Number of Rows 1
Number of Positions 6
Connector Type Header
Termination Kinked Pin, Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series HTSW
Published 2005
Packaging Bulk
Operating Temperature -55°C~125°C

Dimensions

Contact Finish Thickness - Mating 10.0μin 0.25μm

Compliance

Material Flammability Rating UL94 V-0
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant

Physical

Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Phosphor Bronze

Supply Chain

Factory Lead Time 3 Weeks
