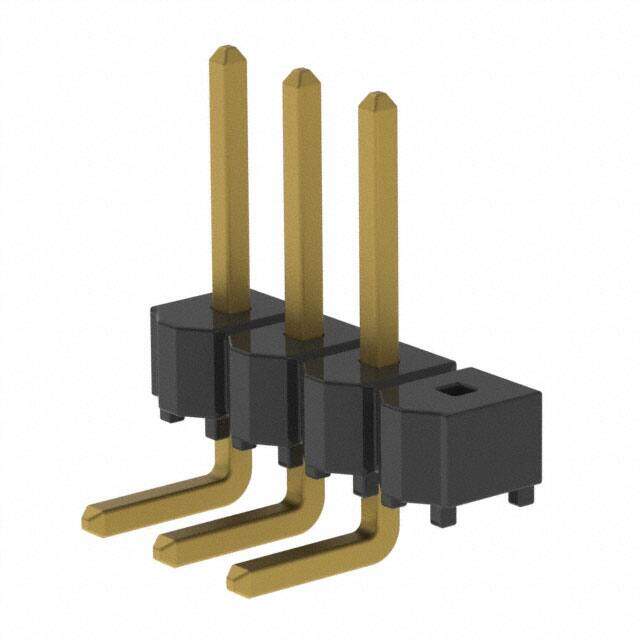

HTSW-104-08-G-S-RA-001
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER R/A 4POS 2.54MM
PDF
/
Inventory: 5100
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Material Phosphor Bronze
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Series HTSW
JESD-609 Code e4
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
Connector Type Header
Number of Positions 4
Number of Rows 1
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Male Pin
Current Rating (Amps) Varies by WireGAuge
Insulation Height 0.122 3.10mm
Style Board to Board or Cable
Number of Positions Loaded 3
Pitch - Mating 0.100 2.54mm
Insulation Color Natural
Number of Conductors ONE
Reliability COMMERCIAL
Contact Length - Post 0.090 2.29mm
Shrouding Unshrouded
Number Of PCB Rows 1
Lead Pitch 2.54mm
Contact Length - Mating 0.230 5.84mm
PCB Contact Pattern RECTANGULAR
Dimensions
Contact Finish Thickness - Mating 10.0μin 0.25μm
Contact Finish Thickness - Post 3.00μin 0.076μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
