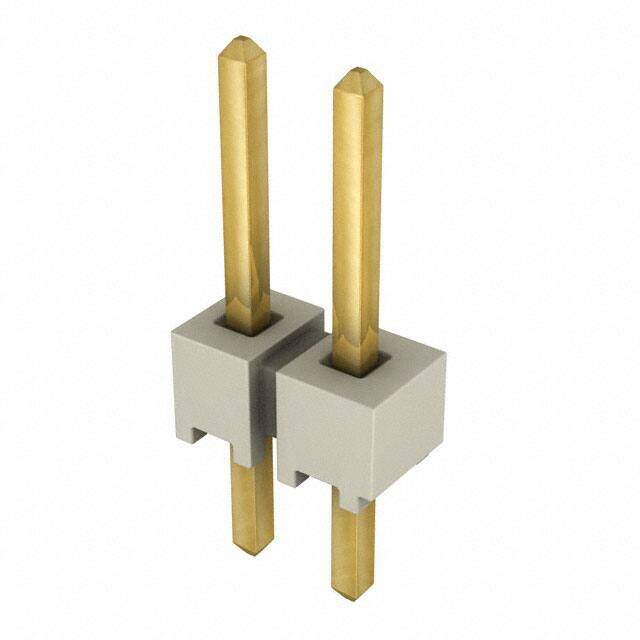

HTSW-102-26-G-S
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Male Pin Rectangular Connector
PDF
/
Buying Options
Total Price: USD $0.46
Unit Price: USD $0.461038
≥1 USD $0.461038
≥10 USD $0.434941
≥100 USD $0.410322
≥500 USD $0.387102
≥1000 USD $0.36519
Inventory: 2314
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Material Phosphor Bronze
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Housing Material Polymer
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2005
Series HTSW
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 2
Max Operating Temperature 125°C
Min Operating Temperature -55°C
Color Natural
Number of Rows 1
Gender Male
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Male Pin
Current Rating (Amps) Varies by WireGAuge
Pitch 2.54mm
Orientation Straight
Depth 2.48mm
Insulation Height 0.100 2.54mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Natural
Contact Length - Post 0.126 3.20mm
Shrouding Unshrouded
Lead Pitch 2.54mm
Number of Contacts 2
Contact Finish - Post Gold
Contact Length - Mating 0.230 5.84mm
Housing Color Natural
Overall Contact Length 0.456 11.58mm
Max Voltage Rating (AC) 550V
Max Current Rating 7.6A
Dimensions
Length 5.08mm
Contact Finish Thickness - Mating 10.0μin 0.25μm
Contact Finish Thickness - Post 3.00μin 0.076μm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
