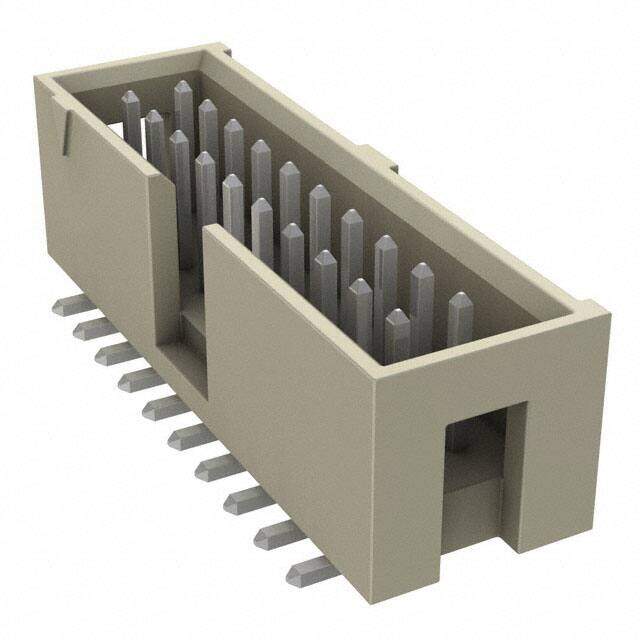

HTST-110-01-T-DV
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
HTST - Samtec 2.54mm High-Temp Shrouded Surface Mount Terminal Strip Cable Mate
PDF
/
Buying Options
Total Price: USD $2.36
Unit Price: USD $2.362219
≥1 USD $2.362219
≥10 USD $2.228513
≥100 USD $2.102367
≥500 USD $1.983367
≥1000 USD $1.871101
Inventory: 9624
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Material Phosphor Bronze
Mount Surface Mount
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Housing Material Polychlorinated
Technical
Operating Temperature -55°C~105°C
Packaging Tube
Published 2011
Series Flex Stack, HTST
JESD-609 Code e3
Feature Keying Slot
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 20
Number of Rows 2
Gender Male
Fastening Type Push-Pull
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 3.4A per Contact
Total Number of Contacts 20
Orientation Straight
Depth 9.27mm
Insulation Height 0.350 8.89mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Row Spacing - Mating 0.100 (2.54mm)
Shrouding Shrouded - 4 Wall
Number Of PCB Rows 2
Contact Length - Mating 0.250 6.35mm
PCB Contact Pattern RECTANGULAR
Body Breadth 0.365 inch
UL Flammability Code 94V-0
Housing Color Natural
Insulation Resistance 5000000000Ohm
Mating Contact Pitch 0.1 inch
Max Current Rating 3A
Polarization Key POLARIZED HOUSING
PCB Contact Row Spacing 6.858 mm
Dimensions
Length 33.02mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
