HPM-04-01-T-S
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

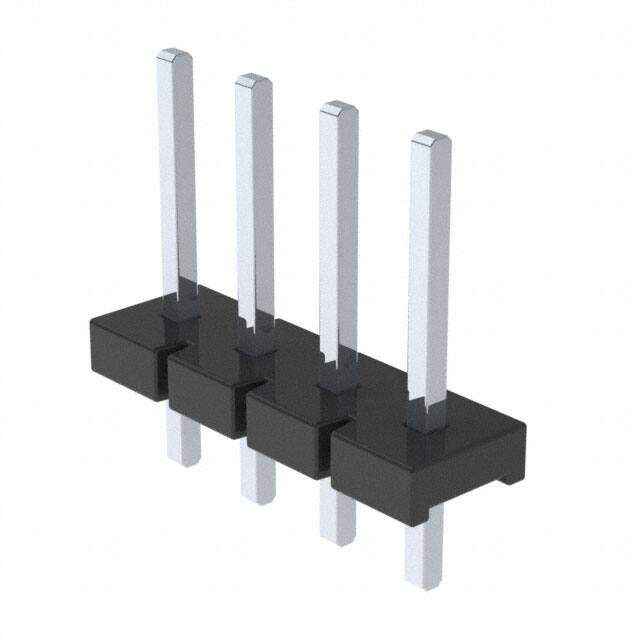

SAMTEC HPM-04-01-T-S Board-To-Board Connector, Vertical, HPM Series, 4 Contacts, Header, 5.08 mm, Through Hole, 1 Rows
PDF
/
Buying Options
Total Price: USD $1.22
Unit Price: USD $1.2232
≥1 USD $1.2232
≥10 USD $1.0648
≥100 USD $0.951896
≥500 USD $0.79325
≥1000 USD $0.679932
≥3000 USD $0.60287
Inventory: 1028
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Material Copper Alloy
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyester, Glass Filled
Housing Material Polyester
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Published 2011
Series HPM
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 4
Number of Rows 1
Gender Male
Voltage - Rated 850VAC 1200VDC
Fastening Type Push-Pull
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Orientation Straight
Terminal Pitch 5.08mm
Depth 6.35mm
Insulation Height 0.100 2.54mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.200 5.08mm
Insulation Color Black
Contact Length - Post 0.180 4.57mm
Shrouding Unshrouded
Contact Length - Mating 0.470 11.94mm
Overall Contact Length 0.750 19.05mm
Dimensions
Length 20.32mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
