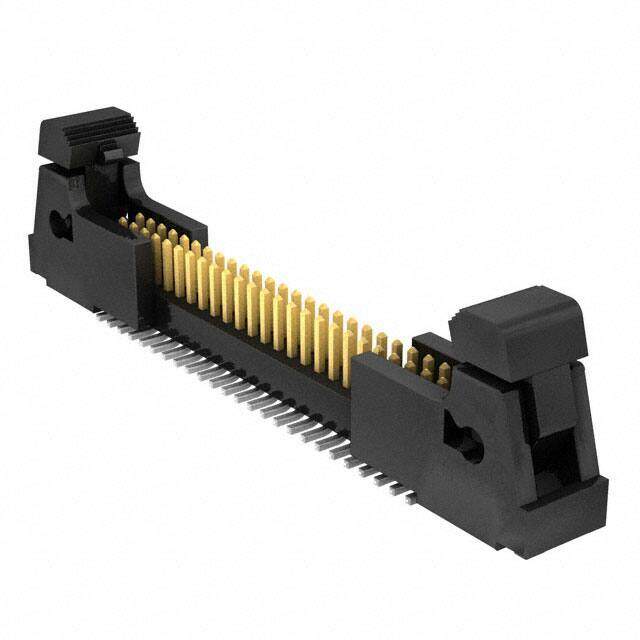

FTSH-125-01-L-DV-EJ
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Ejector Header HDR 50 POS 1.27mm Solder ST SMD Automotive Tube
PDF
/
Buying Options
Total Price: USD $5.46
Unit Price: USD $5.4648
≥1 USD $5.4648
≥10 USD $4.9632
≥100 USD $4.372896
≥500 USD $3.716962
≥1000 USD $3.17035
Inventory: 137
Minimum: 1
-
+
Technical Details
Technical
Connector Type Header, Cuttable
Number of Positions 50
Number of Rows 2
Gender Male
Additional Feature E.L.P
HTS Code 8536.69.40.40
Fastening Type Latch Lock/Eject Hooks
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 3.4A per Contact
Total Number of Contacts 50
Orientation Straight
Depth 5.84mm
Insulation Height 0.099 2.51mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.050 1.27mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Row Spacing - Mating 0.050 (1.27mm)
Shrouding Unshrouded
Number Of PCB Rows 2
Contact Finish - Post Tin
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature End Shrouds
JESD-609 Code e3
Series FTSH
Published 2015
Packaging Tube
Operating Temperature -55°C~125°C
Contact Length - Mating 0.120 3.05mm
PCB Contact Pattern RECTANGULAR
Body Breadth 0.135 inch
Mating Contact Pitch 0.05 inch
PCB Contact Row Spacing 4.064 mm
Physical
Mounting Option 1 LOCKING
Housing Material Polymer
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Surface Mount
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 6 Weeks
Dimensions
Length 47.52mm
Plating Thickness 10μin
Contact Finish Thickness - Mating 10.0μin 0.25μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Lead Free Lead Free
