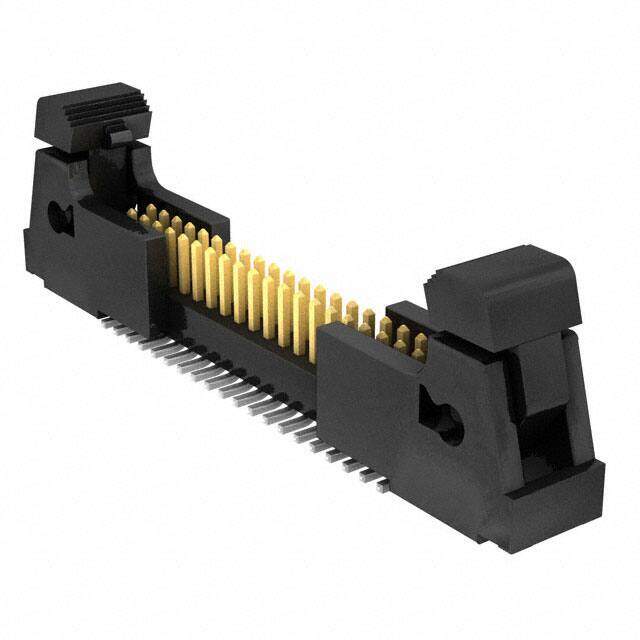

FTSH-120-01-L-DV-EJ-P-TR
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER 40POS DUAL .05 SMD
PDF
/
Buying Options
Total Price: USD $7.15
Unit Price: USD $7.1544
≥1 USD $7.1544
≥10 USD $6.43896
≥100 USD $5.755024
Inventory: 92
Minimum: 1
-
+
Technical Details
Technical
PCB Contact Row Spacing 4.064 mm
Mating Contact Pitch 0.05 inch
Housing Color Black
UL Flammability Code 94V-0
Body Breadth 0.135 inch
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.120 3.05mm
Contact Finish - Post Tin
Number Of PCB Rows 2
Shrouding Unshrouded
Row Spacing - Mating 0.050 (1.27mm)
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Pitch - Mating 0.050 1.27mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.099 2.51mm
Depth 5.84mm
Orientation Straight
Total Number of Contacts 40
Current Rating (Amps) 3.4A per Contact
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Latch Lock/Eject Hooks
Additional Feature PICK & PLACE PAD
Gender Male
Number of Rows 2
Number of Positions 40
Connector Type Header, Cuttable
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature End Shrouds, Pick and Place
JESD-609 Code e3
Series FTSH
Published 2014
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C
Dimensions
Length 41.17mm
Plating Thickness 10μin
Contact Finish Thickness - Mating 10.0μin 0.25μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Physical
Housing Material Polymer
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Surface Mount
Mount Surface Mount
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 6 Weeks
