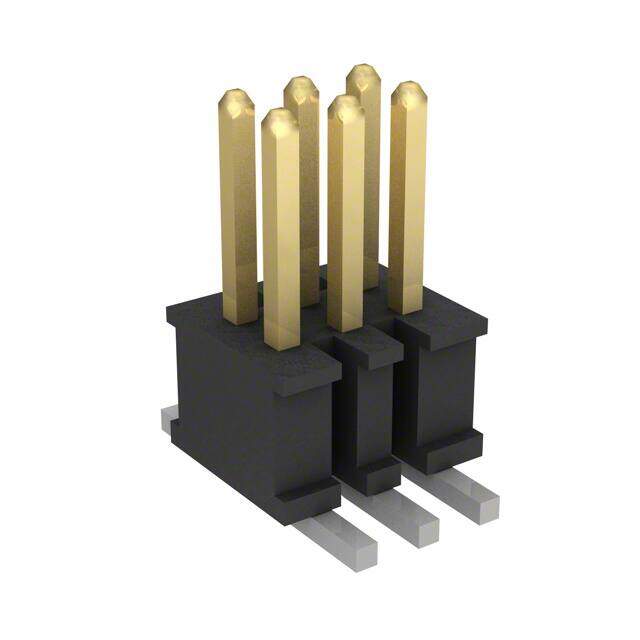

FTSH-103-03-L-DV-TR
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Unshrouded Header HDR 6 POS 1.27mm Solder ST SMD T/R
PDF
/
Inventory: 9021
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Shrouding Unshrouded
Number Of PCB Rows 2
Contact Finish - Post Tin
Contact Length - Mating 0.065 1.65mm
PCB Contact Pattern RECTANGULAR
Body Breadth 0.135 inch
Body Depth 0.115 inch
Mating Contact Pitch 0.05 inch
Row Spacing - Mating 0.050 (1.27mm)
Body Length or Diameter 0.15 inch
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.050 1.27mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.099 2.51mm
Total Number of Contacts 6
Current Rating (Amps) 3.4A per Contact
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
Additional Feature TAPE AND REEL
Gender Male
Number of Rows 2
Number of Positions 6
Connector Type Header, Cuttable
ECCN Code EAR99
Termination Solder
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series FTSH
Published 2015
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C
Dimensions
Plating Thickness 10μin
Contact Finish Thickness - Mating 10.0μin 0.25μm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Physical
Mounting Option 1 LOCKING
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Surface Mount
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 3 Weeks
