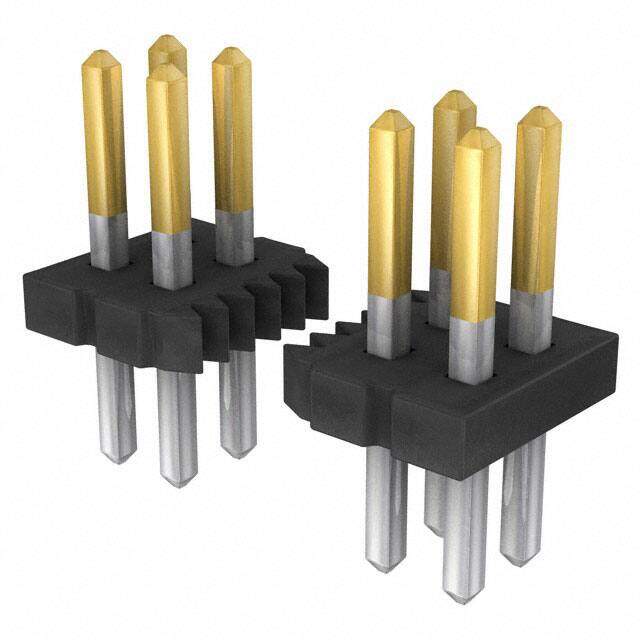

FTS-116-01-L-D image
Favorite
FTS-116-01-L-D image
Favorite

FTS-116-01-L-D

Samtec Inc.
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description SAMTEC FTS-116-01-L-D Board-To-Board Connector, Vertical, FTS Series, 32 Contacts, Header, 1.27 mm, Through Hole, 2 Rows
PDF
/
Buying Options
Total Price: USD $4.72
Unit Price: USD $4.7168
≥1 USD $4.7168
≥10 USD $4.28032
≥100 USD $3.771592
≥500 USD $3.20584
≥1000 USD $2.734389
Inventory: 42
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness - Mating 10.0μin 0.25μm
Width 3.42mm
Length 20.32mm

Technical

Overall Contact Length 0.244 6.20mm
Housing Color Black
Contact Length - Mating 0.120 3.05mm
Contact Finish - Post Tin
Shrouding Unshrouded
Contact Length - Post 0.090 2.29mm
Row Spacing - Mating 0.050 (1.27mm)
Pitch - Mating 0.050 1.27mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.034 0.86mm
Depth 3.42mm
Orientation Straight
Current Rating (Amps) 3.4A per Contact
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Pull
Additional Feature LOW PROFILE
Gender Male
Number of Rows 2
Number of Positions 32
Connector Type Header, Cuttable
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series FTS
Published 1998
Packaging Bulk
Operating Temperature -55°C~125°C

Physical

Housing Material Polymer
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Phosphor Bronze
