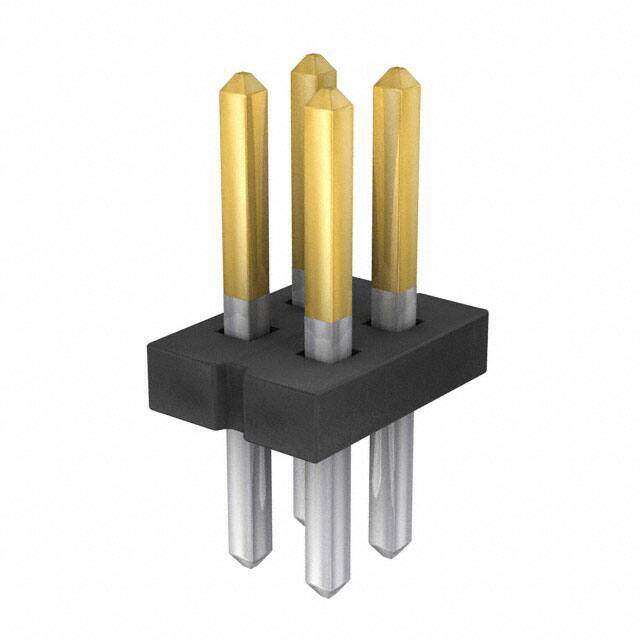

FTS-102-01-F-D
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
LOW PROFILE Male Pin Rectangular Connector
PDF
/
Buying Options
Total Price: USD $1
Unit Price: USD $0.999808
≥1 USD $0.999808
≥10 USD $0.943221
≥100 USD $0.889826
≥500 USD $0.839458
≥1000 USD $0.791935
Inventory: 8175
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 3.00μin 0.076μm
Length 2.54mm
Technical
Overall Contact Length 0.244 6.20mm
Contact Length - Mating 0.120 3.05mm
Contact Finish - Post Tin
Shrouding Unshrouded
Contact Length - Post 0.090 2.29mm
Row Spacing - Mating 0.050 (1.27mm)
Insulation Color Black
Pitch - Mating 0.050 1.27mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.034 0.86mm
Depth 3.42mm
Orientation Straight
Current Rating (Amps) 3.4A per Contact
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Pull
Additional Feature LOW PROFILE
Gender Male
Number of Rows 2
Number of Positions 4
Connector Type Header, Cuttable
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series FTS
Published 2012
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Housing Material Polymer
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Through Hole
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 3 Weeks
