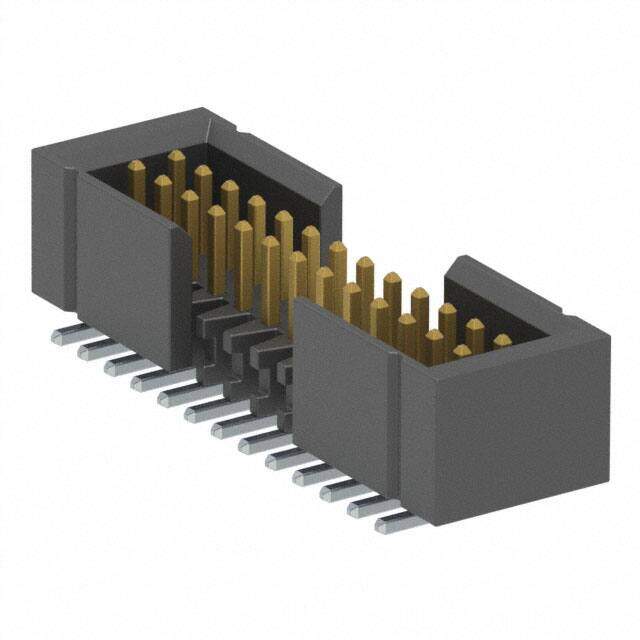

FTMH-113-02-L-DV-ES-P-TR
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Shrouded Header HDR 26 POS 1mm Solder ST SMD T/R
PDF
/
Inventory: 1987
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Material Phosphor Bronze
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Series FTMH
JESD-609 Code e3
Feature End Shrouds, Pick and Place
Part Status Active
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 26
Number of Rows 2
Gender Male
Additional Feature E.L.P, LOW PROFILE
HTS Code 8536.69.40.40
Fastening Type Push-Pull
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 2.8A per Contact
Total Number of Contacts 26
Terminal Pitch 1mm
Insulation Height 0.059 1.50mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.039 1.00mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Body Length or Diameter 0.533 inch
Row Spacing - Mating 0.039 (1.00mm)
Shrouding Unshrouded
Number Of PCB Rows 2
Contact Finish - Post Tin
Contact Length - Mating 0.075 1.90mm
PCB Contact Pattern RECTANGULAR
Body Depth 0.07 inch
Contact Resistance 10mOhm
Mating Contact Pitch 0.039 inch
PCB Contact Row Spacing 3.556 mm
Dimensions
Plating Thickness FLASH inch
Contact Finish Thickness - Mating 10.0μin 0.25μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
