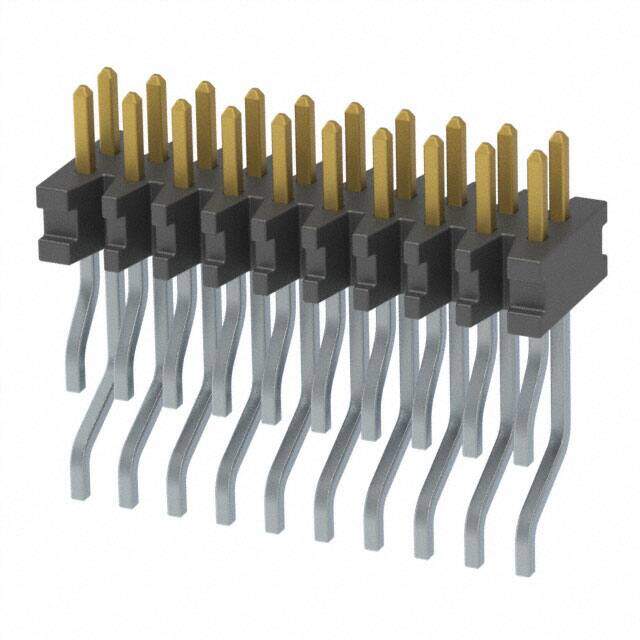

FTMH-110-03-L-DH-TR image
Favorite
FTMH-110-03-L-DH-TR image
Favorite

FTMH-110-03-L-DH-TR

Samtec Inc.
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description Male Pin Rectangular Connector
PDF
/
Inventory: 5837
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness - Mating 10.0μin 0.25μm

Technical

UL Flammability Code 94V-0
Contact Length - Mating 0.065 1.65mm
Contact Finish - Post Tin
Shrouding Unshrouded
Row Spacing - Mating 0.039 (1.00mm)
Insulation Color Black
Pitch - Mating 0.039 1.00mm
Current Rating 1.5A
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.125 3.18mm
Terminal Pitch 1mm
Total Number of Contacts 20
Current Rating (Amps) 2.8A per Contact
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Pull
Gender Male
Number of Rows 2
Number of Positions 20
Connector Type Header
Termination Solder
Part Status Active
JESD-609 Code e3
Series FTMH
Published 2007
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C

Physical

Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Surface Mount, Right Angle
Contact Material Phosphor Bronze

Supply Chain

Factory Lead Time 3 Weeks
