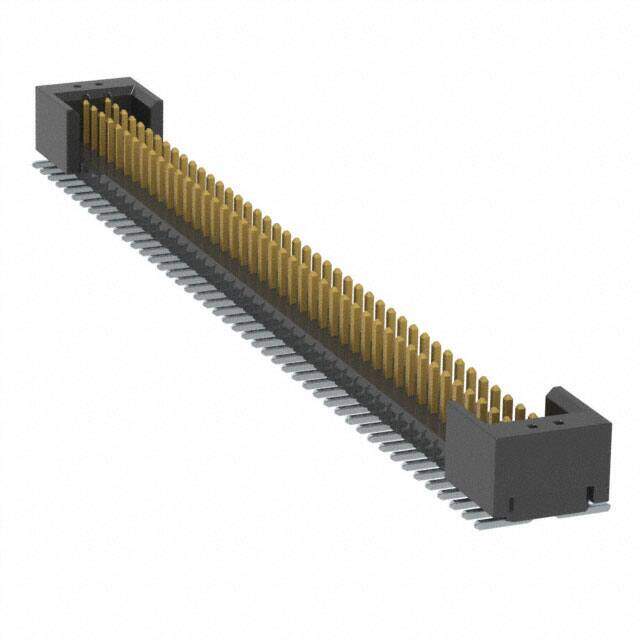

FTM-142-02-F-DV-S
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Rectangular Connector Header
PDF
/
Inventory: 8620
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Contact Finish Thickness - Mating 3.00μin 0.076μm
Plating Thickness FLASH inch
Technical
Mating Contact Pitch 0.039 inch
Body Depth 0.05 inch
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.075 1.90mm
Contact Finish - Post Tin
Number Of PCB Rows 2
Shrouding Unshrouded
Row Spacing - Mating 0.039 (1.00mm)
Body Length or Diameter 1.654 inch
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.039 1.00mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.038 0.97mm
Terminal Pitch 0.9906mm
Total Number of Contacts 84
Current Rating (Amps) 2.8A per Contact
Contact Type Male Pin
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
HTS Code 8536.69.40.40
Gender Male
Number of Rows 2
Number of Positions 84
Connector Type Header, Cuttable
ECCN Code EAR99
Termination Solder
Part Status Active
Pbfree Code yes
Feature End Shrouds
JESD-609 Code e3
Series FTM
Packaging Tube
Operating Temperature -55°C~125°C
Physical
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Surface Mount
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 3 Weeks
