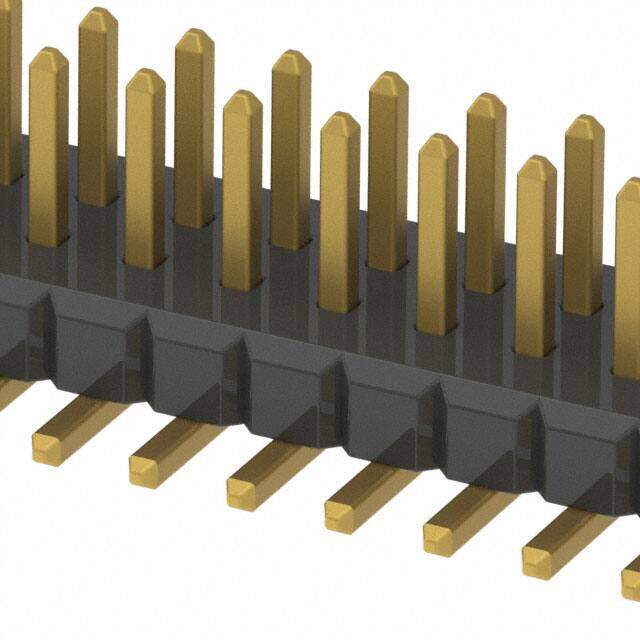

FTM-128-02-G-DV image
Favorite
FTM-128-02-G-DV image
Favorite

FTM-128-02-G-DV

Samtec Inc.
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description Conn Unshrouded Header HDR 56 POS 1mm Solder ST SMD
PDF
/
Inventory: 9284
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Technical

Mating Contact Pitch 0.039 inch
Body Depth 0.05 inch
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.075 1.90mm
Number Of PCB Rows 2
Shrouding Unshrouded
Row Spacing - Mating 0.039 (1.00mm)
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.039 1.00mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.038 0.97mm
Terminal Pitch 1mm
Total Number of Contacts 56
Current Rating (Amps) 2.8A per Contact
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
Gender Male
Number of Rows 2
Number of Positions 56
Connector Type Header, Cuttable
Termination Solder
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series FTM
Packaging Tube
Operating Temperature -55°C~125°C

Physical

Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Surface Mount
Contact Material Phosphor Bronze

Supply Chain

Factory Lead Time 3 Weeks
