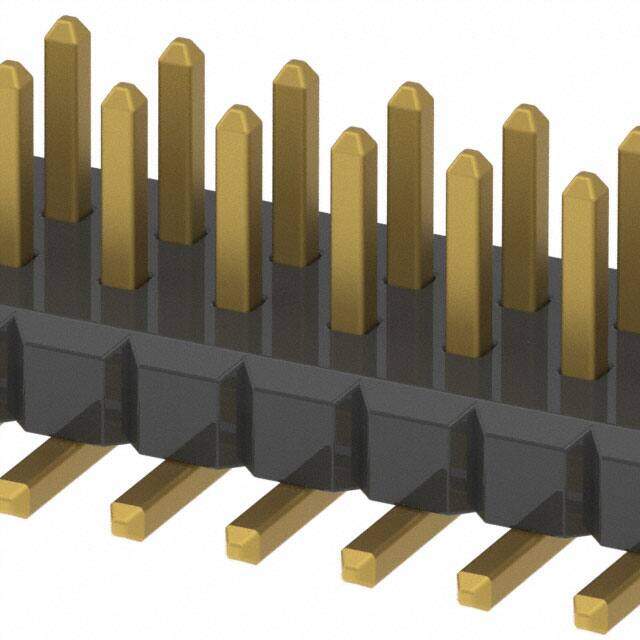

FTM-120-03-G-DV-TR
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Male Pin Rectangular Connector
PDF
/
Inventory: 7639
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Contact Length - Mating 0.065 1.65mm
Shrouding Unshrouded
Row Spacing - Mating 0.039 (1.00mm)
Insulation Color Black
Pitch - Mating 0.039 1.00mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.038 0.97mm
Current Rating (Amps) 2.8A per Contact
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Push-Pull
Number of Rows 2
Number of Positions 40
Connector Type Header, Cuttable
Termination Solder
Part Status Active
Series FTM
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C
Physical
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Surface Mount
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 3 Weeks
