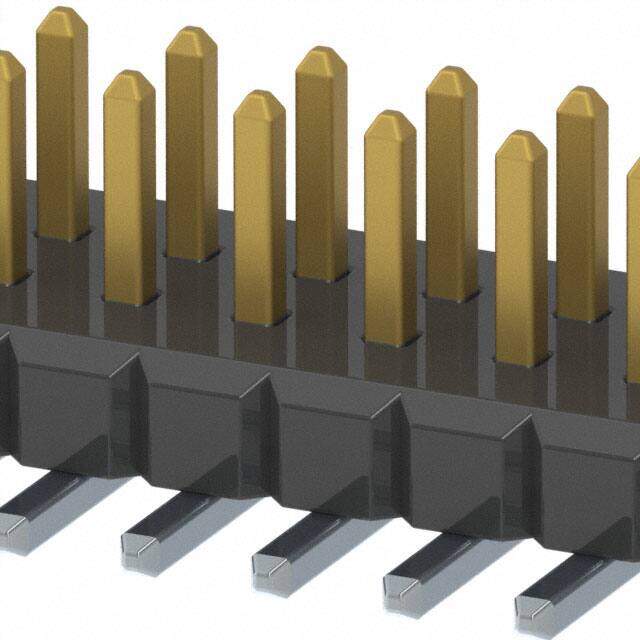

FTM-115-03-LM-DV
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Rectangular Connector Header
PDF
/
Inventory: 6013
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Contact Length - Mating 0.065 1.65mm
Contact Finish - Post Tin
Shrouding Unshrouded
Row Spacing - Mating 0.039 (1.00mm)
Insulation Color Black
Pitch - Mating 0.039 1.00mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.038 0.97mm
Terminal Pitch 1mm
Total Number of Contacts 30
Current Rating (Amps) 2.8A per Contact
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Pull
Gender Male
Number of Rows 2
Number of Positions 30
Connector Type Header, Cuttable
Termination Solder
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series FTM
Published 2016
Packaging Tube
Operating Temperature -55°C~125°C
Physical
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Surface Mount
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 3 Weeks
