FTM-112-02-F-DV-TR
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

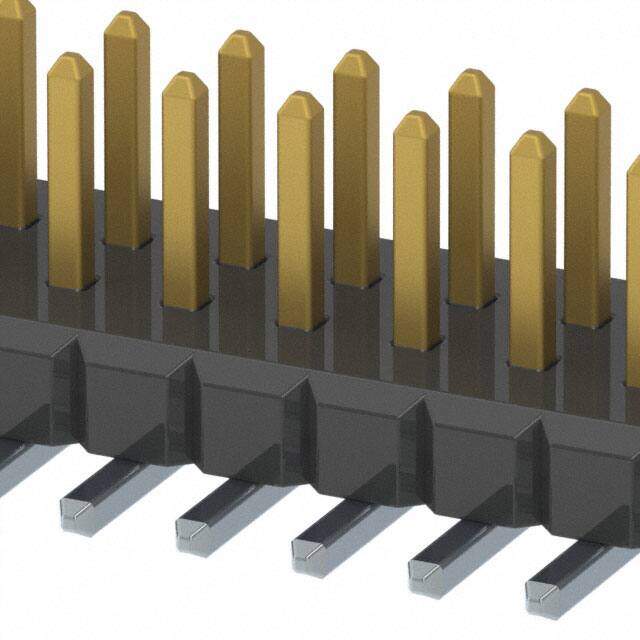

SAMTEC - FTM-112-02-F-DV-TR - HEADER, 1MM, SMT, 24WAY
PDF
/
Inventory: 3588
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Material Phosphor Bronze
Mount Surface Mount
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Published 2011
Series FTM
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Termination Solder
ECCN Code EAR99
Connector Type Header, Cuttable
Number of Positions 24
Number of Rows 2
Gender Male
HTS Code 8536.69.40.40
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
Contact Type Male Pin
Current Rating (Amps) 2.8A per Contact
Total Number of Contacts 24
Terminal Pitch 0.9906mm
Insulation Height 0.038 0.97mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.039 1.00mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Row Spacing - Mating 0.039 (1.00mm)
Shrouding Unshrouded
Number Of PCB Rows 2
Contact Finish - Post Tin
Contact Length - Mating 0.075 1.90mm
PCB Contact Pattern RECTANGULAR
Body Depth 0.05 inch
Mating Contact Pitch 0.039 inch
Dimensions
Plating Thickness FLASH inch
Contact Finish Thickness - Mating 3.00μin 0.076μm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
