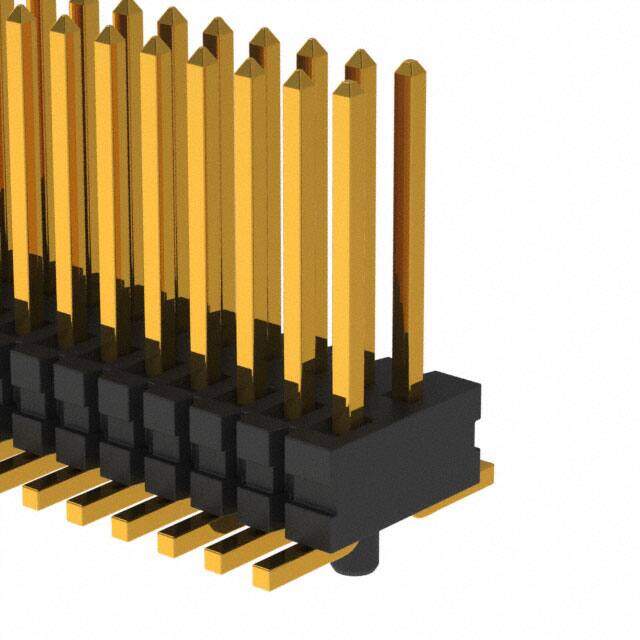

FTE-147-01-G-DV-A-P-TR image
Favorite
FTE-147-01-G-DV-A-P-TR image
Favorite

FTE-147-01-G-DV-A-P-TR

Samtec Inc.
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description W/ALIGN PINPICK&PLACE PADT&R Male Pin Rectangular Connector
PDF
/
Inventory: 7579
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness - Mating 10.0μin 0.25μm
Plating Thickness 10μin

Technical

Withdrawl Force-Min 4.448 N
Mating Contact Pitch 0.031 inch
Body Depth 0.055 inch
Body Breadth 0.164 inch
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.075 1.90mm
Number Of PCB Rows 2
Shrouding Unshrouded
Row Spacing - Mating 0.047 (1.20mm)
Body Length or Diameter 1.48 inch
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.031 0.80mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.055 1.40mm
Terminal Pitch 0.7874mm
Total Number of Contacts 94
Current Rating (Amps) 2.7A per Contact
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Push-Pull
HTS Code 8536.69.40.40
Additional Feature W/ALIGN PIN,PICK&PLACE PAD,T&R
Gender Male
Number of Rows 2
Number of Positions 94
Connector Type Header
ECCN Code EAR99
Termination Solder
Part Status Active
Pbfree Code yes
Feature Board Guide, Pick and Place
JESD-609 Code e4
Series FTE
Published 2016
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C

Physical

Board Mounting Option POSITIONING PIN
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Surface Mount
Contact Material Phosphor Bronze

Supply Chain

Factory Lead Time 3 Weeks
