FTE-108-01-G-DH
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

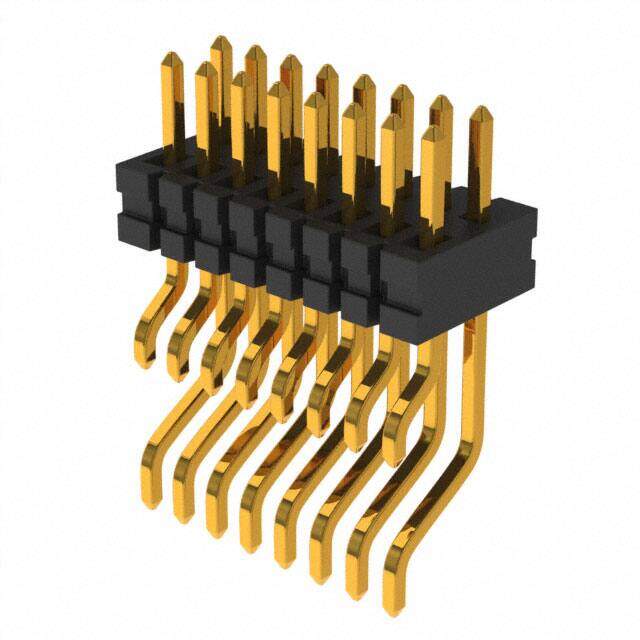

SAMTEC FTE-108-01-G-DHBoard-To-Board Connector, Right Angle, Surface Mount, Header, 16 Contacts, 0.8 mm
PDF
/
Inventory: 3330
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 3.00μin 0.076μm
Contact Finish Thickness - Mating 10.0μin 0.25μm
Plating Thickness 10μin
Technical
Withdrawl Force-Min 4.448 N
Mating Contact Pitch 0.031 inch
Body Depth 0.055 inch
Housing Color Black
Mating Information MULTIPLE MATING PARTS AVAILABLE
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.075 1.90mm
Lead Pitch 800μm
Number Of PCB Rows 2
Shrouding Unshrouded
Row Spacing - Mating 0.047 (1.20mm)
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Pitch - Mating 0.031 0.80mm
Current Rating 750mA
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.120 3.05mm
Terminal Pitch 0.8mm
Total Number of Contacts 16
Current Rating (Amps) 2.7A per Contact
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Pull
Additional Feature NONE
Gender Male
Number of Rows 2
Number of Positions 16
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series FTE
Published 2005
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Housing Material Plastic
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Surface Mount, Right Angle
Mount Surface Mount
Contact Material Phosphor Bronze
