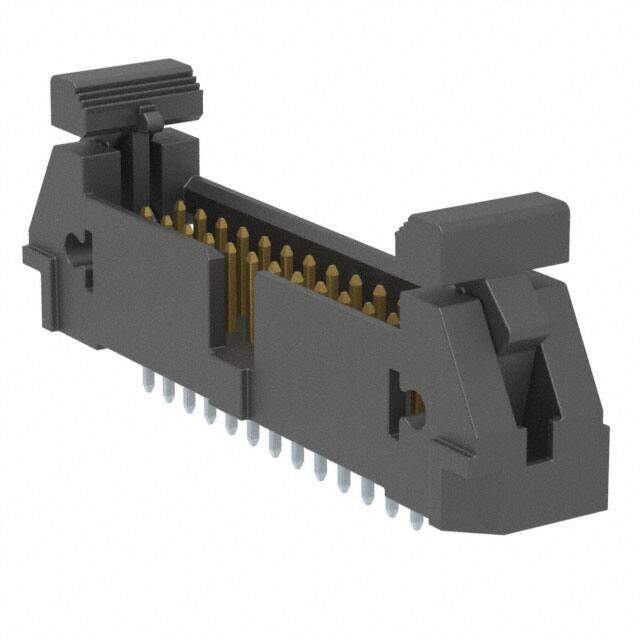

EJH-113-01-FM-D-TH
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Ejector Header HDR 26 POS 2.54mm Solder ST Thru-Hole Tube
PDF
/
Inventory: 4350
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Contact Finish Thickness - Mating 3.00μin 0.076μm
Technical
Polarization Key POLARIZED HOUSING
Mating Contact Pitch 0.1 inch
Body Breadth 0.39 inch
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.225 5.72mm
Contact Finish - Post Tin
Number Of PCB Rows 2
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.120 3.05mm
Row Spacing - Mating 0.100 (2.54mm)
Body Length or Diameter 1.994 inch
Reliability COMMERCIAL
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.500 12.70mm
Current Rating (Amps) 3A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Latch Lock/Eject Hooks
Gender Male
Number of Rows 2
Number of Positions 26
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Feature Keying Slot
JESD-609 Code e3
Series EJH
Published 2016
Packaging Tube
Operating Temperature -55°C~125°C
Physical
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 3 Weeks
