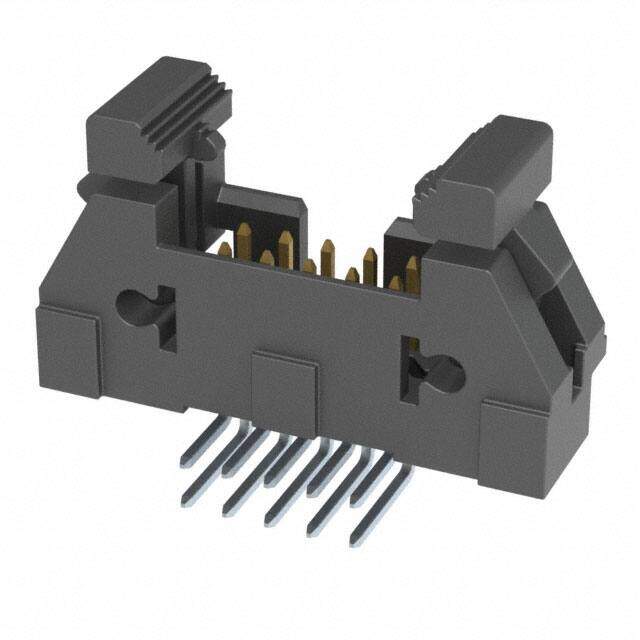

EJH-105-01-S-D-RA
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
POLARIZED Rectangular Connector Header
PDF
/
Buying Options
Total Price: USD $8.61
Unit Price: USD $8.6064
≥1 USD $8.6064
≥10 USD $7.62696
≥100 USD $6.886
Inventory: 34
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Length 30.33mm
Technical
Polarization Key POLARIZED HOUSING
Mating Contact Pitch 0.1 inch
Body Breadth 0.39 inch
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.225 5.72mm
Contact Finish - Post Tin
Number Of PCB Rows 2
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.090 2.29mm
Row Spacing - Mating 0.100 (2.54mm)
Reliability COMMERCIAL
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.390 9.91mm
Depth 20.92mm
Orientation Right Angle
Current Rating (Amps) 3A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Latch Lock/Eject Hooks
HTS Code 8536.69.40.40
Additional Feature POLARIZED
Gender Male
Number of Rows 2
Number of Positions 10
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Feature Keying Slot
JESD-609 Code e3
Series EJH
Published 2013
Packaging Tube
Operating Temperature -55°C~125°C
Physical
Mounting Option 2 LOCKING
Board Mounting Option SPLIT BOARD LOCK
Housing Material Polymer
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Through Hole, Right Angle
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 3 Weeks
Alternative Model
