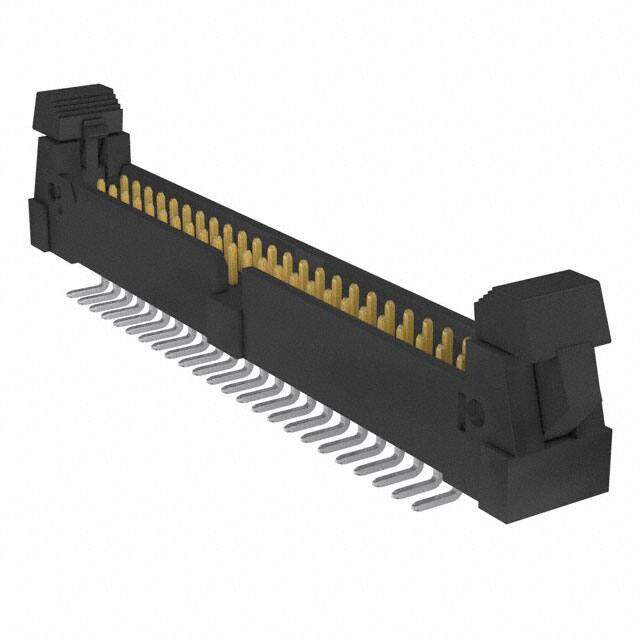

EHT-124-01-L-D-SM-K-TR
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Rectangular Connector Header
PDF
/
Inventory: 2154
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Material Phosphor Bronze
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Mounting Option 1 LATCH & EJECT
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Series EHT
JESD-609 Code e3
Feature Keying Slot, Pick and Place
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 48
Number of Rows 2
Gender Male
HTS Code 8536.69.40.40
Fastening Type Latch Lock/Eject Hooks
Contact Finish - Mating Gold
Contact Type Male Pin
Current Rating (Amps) 3A
Total Number of Contacts 48
Insulation Height 0.370 9.40mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.079 2.00mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Row Spacing - Mating 0.079 (2.00mm)
Shrouding Shrouded - 4 Wall
Number Of PCB Rows 2
Contact Finish - Post Tin
Contact Length - Mating 0.120 3.05mm
PCB Contact Pattern RECTANGULAR
Body Breadth 0.3 inch
Body Depth 0.375 inch
Mating Contact Pitch 0.079 inch
Polarization Key POLARIZED HOUSING
PCB Contact Row Spacing 5.334 mm
Dimensions
Plating Thickness 10μin
Contact Finish Thickness - Mating 15.0μin 0.38μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
