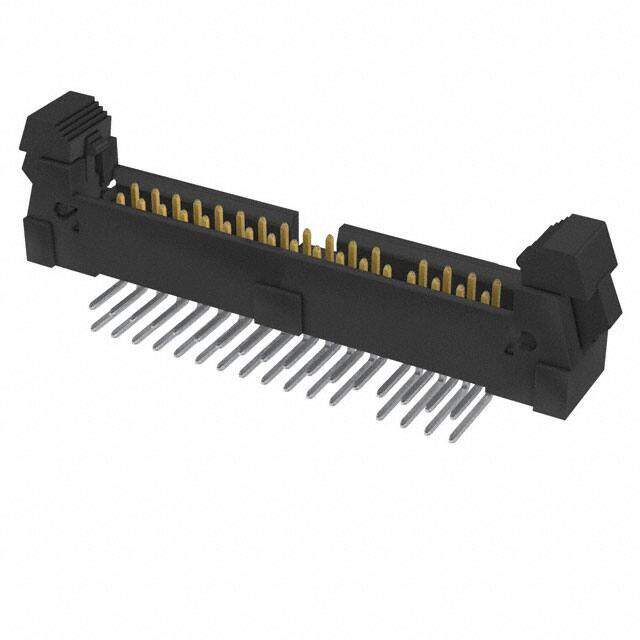

EHT-117-01-S-D-RA-09
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Ejector Header HDR 34 POS 2mm Solder RA Thru-Hole Tube
PDF
/
Inventory: 6882
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Technical
Operating Temperature -55°C~125°C
Packaging Tube
Series EHT
JESD-609 Code e3
Feature Keying Slot
Polarization Key CTR W/GUIDE SLOTS
Mating Contact Pitch 0.079 inch
Body Depth 0.519 inch
Body Breadth 0.3 inch
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.120 3.05mm
Contact Finish - Post Tin
Number Of PCB Rows 2
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.120 3.05mm
Row Spacing - Mating 0.079 (2.00mm)
Body Length or Diameter 1.881 inch
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.079 2.00mm
Number of Positions Loaded 33
Style Board to Cable/Wire
Insulation Height 0.300 7.62mm
Current Rating (Amps) 3A
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Latch Lock/Eject Hooks
HTS Code 8536.69.40.40
Additional Feature NONE
Gender Male
Number of Rows 2
Number of Positions 34
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 30.0μin 0.76μm
Plating Thickness 30μin
Alternative Model
