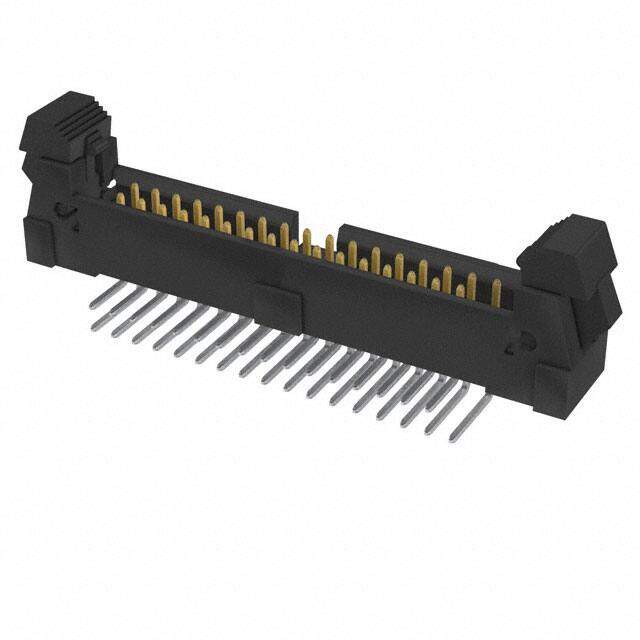

EHT-117-01-S-D-RA-02
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER R/A 34POS 2MM
PDF
/
Inventory: 7305
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 30.0μin 0.76μm
Plating Thickness 30μin
Technical
Polarization Key CTR W/GUIDE SLOTS
Mating Contact Pitch 0.079 inch
Body Depth 0.519 inch
Body Breadth 0.3 inch
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.120 3.05mm
Contact Finish - Post Tin
Number Of PCB Rows 2
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.120 3.05mm
Row Spacing - Mating 0.079 (2.00mm)
Body Length or Diameter 1.881 inch
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.079 2.00mm
Number of Positions Loaded 33
Style Board to Cable/Wire
Insulation Height 0.300 7.62mm
Current Rating (Amps) 3A
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Latch Lock/Eject Hooks
HTS Code 8536.69.40.40
Additional Feature NONE
Number of Rows 2
Number of Positions 34
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Feature Keying Slot
JESD-609 Code e3
Series EHT
Packaging Tube
Operating Temperature -55°C~125°C
Physical
Mounting Option 2 LOCKING
Mounting Option 1 LATCH & EJECT
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Through Hole, Right Angle
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 3 Weeks
Alternative Model
