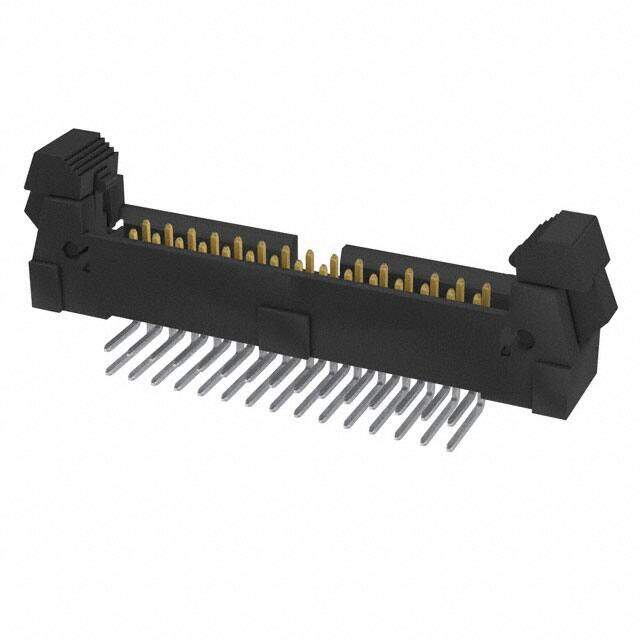

EHT-115-01-F-D-RA
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Ejector Header HDR 30 POS 2mm Solder RA Thru-Hole
PDF
/
Buying Options
Total Price: USD $8.98
Unit Price: USD $8.976
≥1 USD $8.976
≥10 USD $8.07664
≥100 USD $7.218376
≥500 USD $6.047835
≥1000 USD $5.345507
Inventory: 51
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Technical
Operating Temperature -55°C~125°C
Packaging Tube
Published 2016
Series EHT
JESD-609 Code e3
Feature Keying Slot
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
Connector Type Header
Number of Positions 30
Number of Rows 2
Gender Male
Additional Feature POLARIZED
Fastening Type Latch Lock/Eject Hooks
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 3A
Insulation Height 0.300 7.62mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.079 2.00mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Row Spacing - Mating 0.079 (2.00mm)
Contact Length - Post 0.120 3.05mm
Shrouding Shrouded - 4 Wall
Number Of PCB Rows 2
Contact Finish - Post Tin
Contact Length - Mating 0.120 3.05mm
PCB Contact Pattern RECTANGULAR
Body Breadth 0.3 inch
UL Flammability Code 94V-0
Body Depth 0.508 inch
Mating Contact Pitch 0.079 inch
Polarization Key POLARIZED HOUSING
Dimensions
Plating Thickness 3μin
Contact Finish Thickness - Mating 3.00μin 0.076μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
