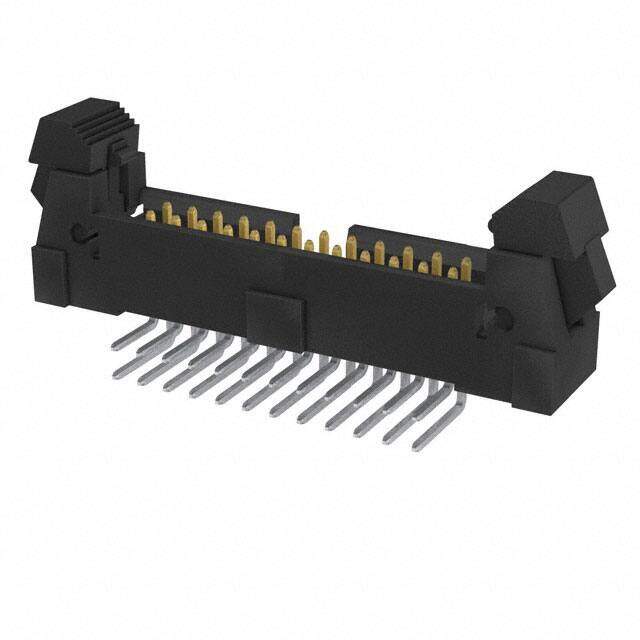

EHT-112-01-S-D-RA
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
SAMTEC - EHT-112-01-S-D-RA - STIFTLEISTE, 2.0MM, RWINKL, 2X12POL
PDF
/
Buying Options
Total Price: USD $13.46
Unit Price: USD $13.4552
≥1 USD $13.4552
≥10 USD $11.924
≥100 USD $10.39544
≥500 USD $8.866669
≥1000 USD $8.132872
Inventory: 87
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 30.0μin 0.76μm
Plating Thickness 30μin
Length 37.79mm
Technical
Polarization Key POLARIZED HOUSING
Max Current Rating 3A
Mating Contact Pitch 0.079 inch
UL Flammability Code 94V-0
Body Breadth 0.3 inch
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.120 3.05mm
Contact Finish - Post Tin
Number Of PCB Rows 2
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.120 3.05mm
Row Spacing - Mating 0.079 (2.00mm)
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.079 2.00mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.300 7.62mm
Depth 15.71mm
Orientation Right Angle
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Latch Lock/Eject Hooks
HTS Code 8536.69.40.40
Additional Feature LATCHED
Gender Male
Number of Rows 2
Number of Positions 24
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Keying Slot
JESD-609 Code e3
Series EHT
Published 2014
Packaging Tube
Operating Temperature -55°C~125°C
Physical
Mounting Option 1 LATCH & EJECT
Housing Material Polymer
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Through Hole, Right Angle
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 3 Weeks
