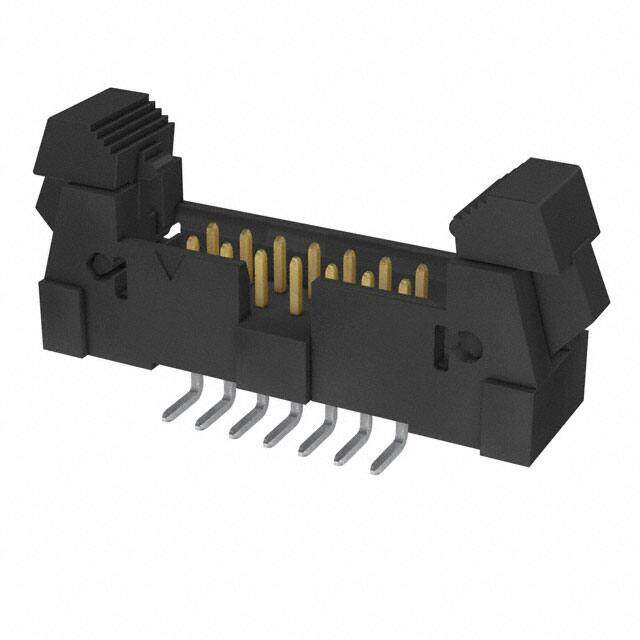

EHT-107-01-S-D-SM
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Ejector Header HDR 14 POS 2mm Solder ST SMD Tube
PDF
/
Buying Options
Total Price: USD $12.98
Unit Price: USD $12.98
≥1 USD $12.98
≥10 USD $11.50776
≥100 USD $10.032792
≥500 USD $8.557366
≥1000 USD $7.849169
Inventory: 90
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 30.0μin 0.76μm
Plating Thickness 30μin
Technical
PCB Contact Row Spacing 5.334 mm
Polarization Key POLARIZED HOUSING
Mating Contact Pitch 0.079 inch
Body Depth 0.375 inch
UL Flammability Code 94V-0
Body Breadth 0.3 inch
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.120 3.05mm
Contact Finish - Post Tin
Number Of PCB Rows 2
Shrouding Shrouded - 4 Wall
Row Spacing - Mating 0.079 (2.00mm)
Body Length or Diameter 1.094 inch
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.079 2.00mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.370 9.40mm
Total Number of Contacts 14
Current Rating (Amps) 3A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Latch Lock/Eject Hooks
Additional Feature POLARIZED
Gender Male
Number of Rows 2
Number of Positions 14
Connector Type Header
Termination Solder
Part Status Active
Pbfree Code yes
Feature Keying Slot
JESD-609 Code e3
Series EHT
Packaging Tube
Operating Temperature -55°C~125°C
Physical
Mounting Option 1 LATCH & EJECT
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Surface Mount
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 3 Weeks
