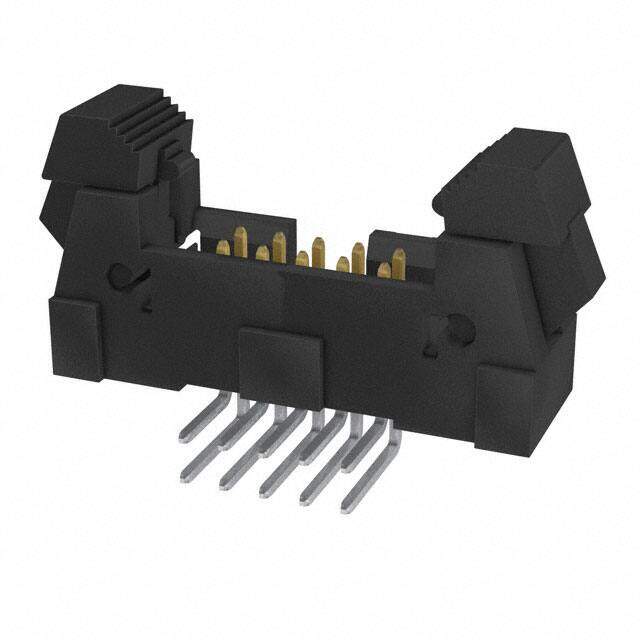

EHT-105-01-L-D-RA-SR image
Favorite
EHT-105-01-L-D-RA-SR image
Favorite

EHT-105-01-L-D-RA-SR

Samtec Inc.
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description Rectangular Connector Header
PDF
/
Inventory: 5051
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 3 Weeks

Physical

Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)

Technical

Operating Temperature -55°C~125°C
Packaging Tube
Series EHT
JESD-609 Code e3
Feature Keying Slot, Strain Relief
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
Connector Type Header
Number of Positions 10
Number of Rows 2
Gender Male
Fastening Type Latch Lock/Eject Hooks
Contact Finish - Mating Gold
Contact Type Male Pin
Current Rating (Amps) 3A
Insulation Height 0.300 7.62mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.079 2.00mm
Insulation Color Black
Row Spacing - Mating 0.079 (2.00mm)
Contact Length - Post 0.120 3.05mm
Shrouding Shrouded - 4 Wall
Contact Finish - Post Tin
Contact Length - Mating 0.120 3.05mm

Dimensions

Contact Finish Thickness - Mating 15.0μin 0.38μm

Compliance

Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status ROHS3 Compliant
