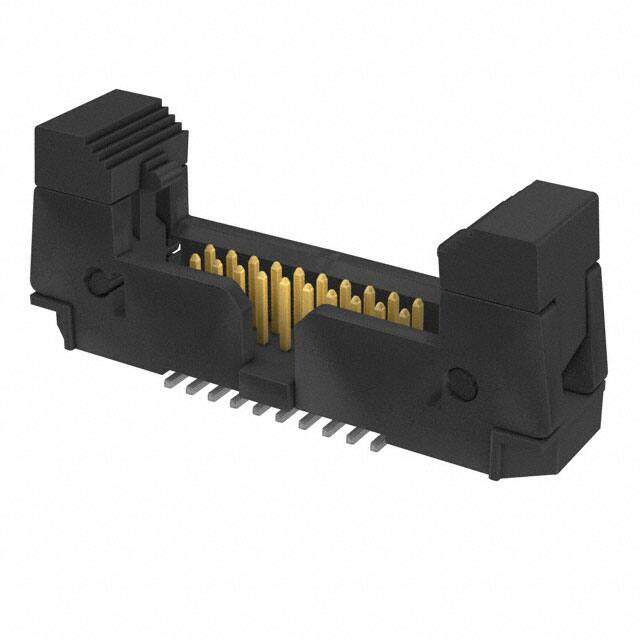

EHF-110-01-L-D-SM-P-TR
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Rectangular Connector Header
PDF
/
Buying Options
Total Price: USD $7.19
Unit Price: USD $7.1896
≥1 USD $7.1896
≥10 USD $6.49968
Inventory: 662
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 1 Weeks
Physical
Contact Material Phosphor Bronze
Contact Plating Gold
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Housing Material Polymer
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Published 2013
Series EHF
Feature Keying Slot, Pick and Place
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 20
Max Operating Temperature 125°C
Min Operating Temperature -55°C
Number of Rows 2
Gender Male
Fastening Type Latch Lock/Eject Hooks
Contact Finish - Mating Gold
Contact Type Male Pin
Current Rating (Amps) 1.75A
Pitch 1.27mm
Orientation Straight
Depth 6.67mm
Insulation Height 0.325 8.25mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.050 1.27mm
Insulation Color Black
Row Spacing - Mating 0.050 (1.27mm)
Shrouding Shrouded - 4 Wall
Number of Contacts 20
Contact Finish - Post Tin
Contact Length - Mating 0.120 3.05mm
Housing Color Black
Max Current Rating 1.75A
Dimensions
Length 27.18mm
Contact Finish Thickness - Mating 10.0μin 0.25μm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
